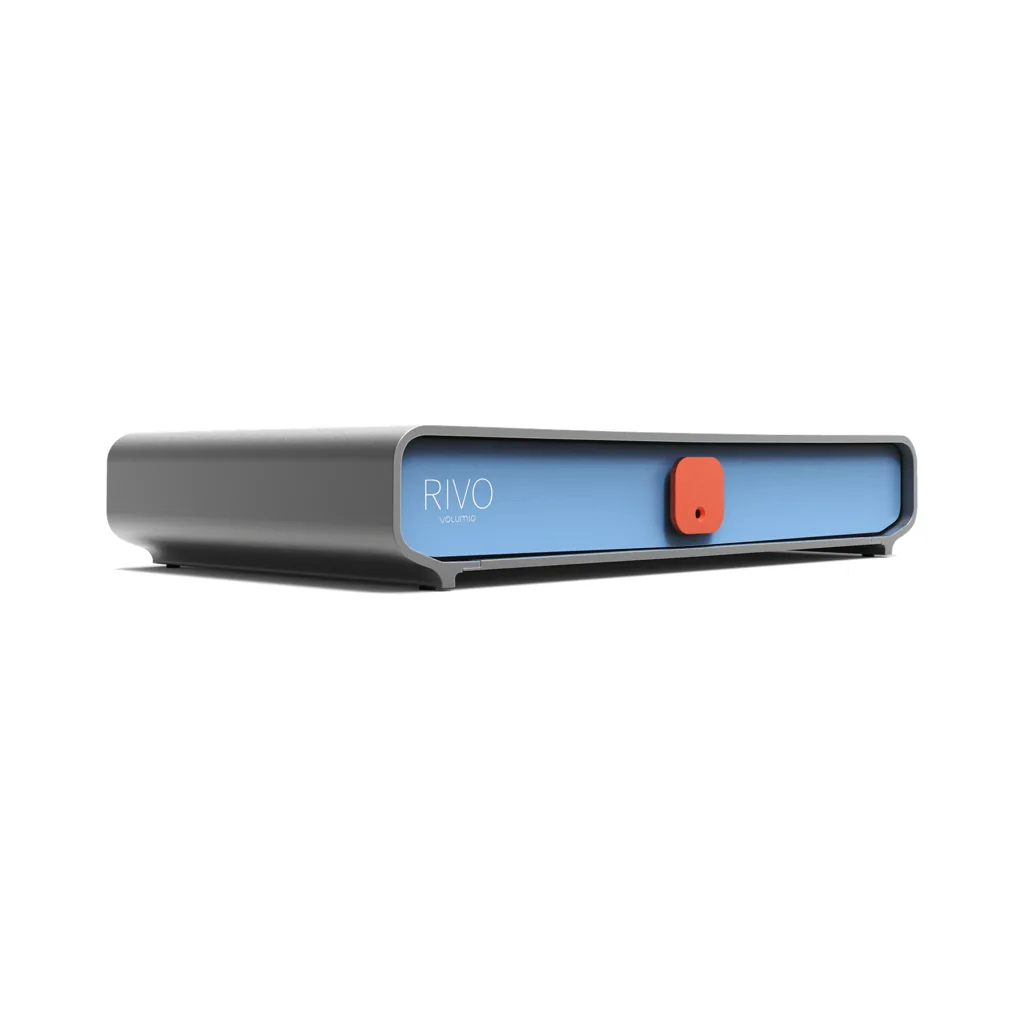

Volumio Rivo - Digital Streaming Transport

Rivo is a digital-only network transport designed for a system that already has a DAC. It deliberately separates streaming from analogue conversion, sending music to a compatible converter or a digital-input amplifier through USB, coaxial S/PDIF or AES/EBU.

Galvanic isolation on the coaxial and AES/EBU outputs and dedicated filtering form part of its digital signal-path design. The current manufacturer specification supports USB playback up to PCM 1536 kHz/32-bit and DSD1024 with multiroom disabled; coaxial and AES/EBU outputs support PCM up to 192 kHz/24-bit.

Volumio OS unites streaming services, radio and local libraries, with Premium features included. Ethernet and dual-band Wi-Fi let the transport fit different network layouts. Rivo has no analogue audio output and needs an external DAC; it should not be confused with the I2S-equipped Rivo Plus.

Technical specifications

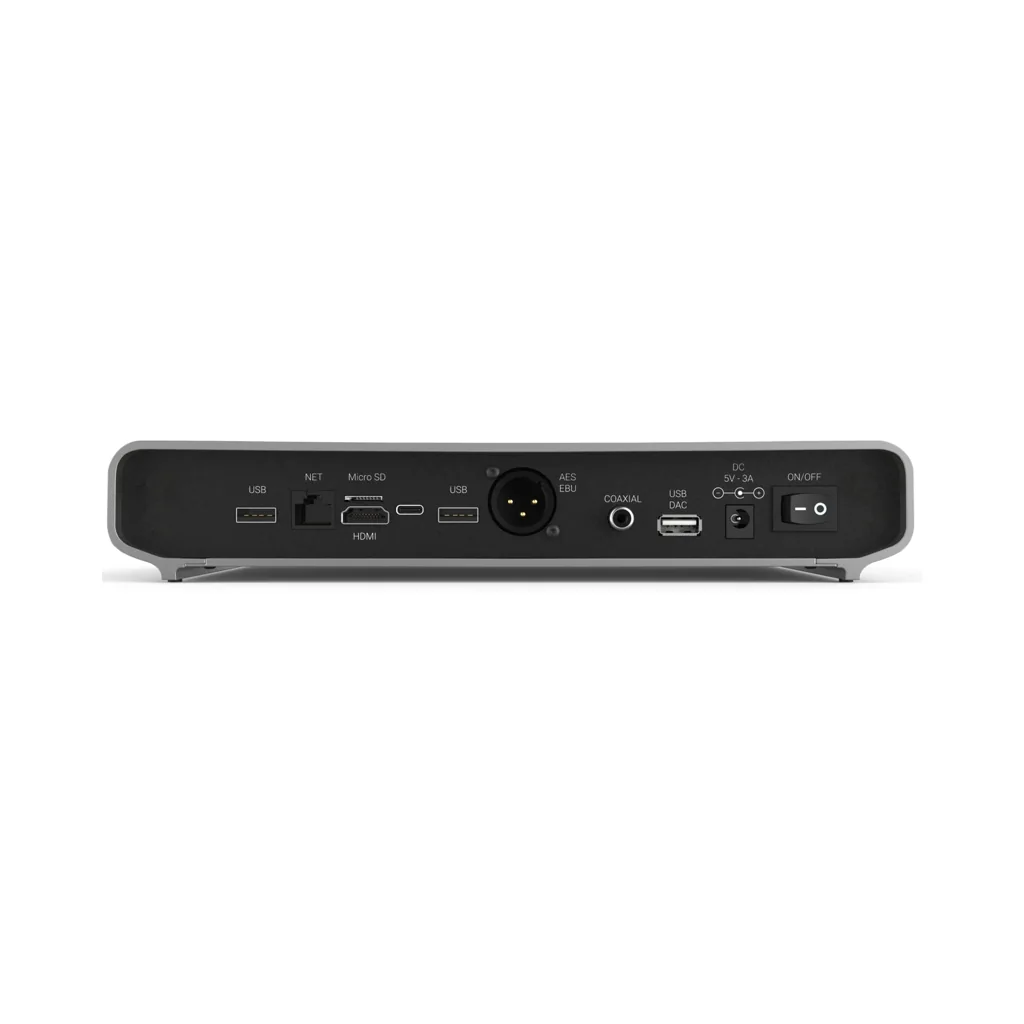

• Audio outputs: USB; coaxial S/PDIF; AES/EBU (digital only)
• USB output: PCM up to 1536 kHz/32-bit and DSD1024 with multiroom disabled
• Coaxial and AES/EBU outputs: PCM up to 192 kHz/24-bit
• Galvanic isolation: coaxial S/PDIF and AES/EBU
• Network: Gigabit Ethernet; dual-band Wi-Fi; Bluetooth 5.0
• Power: 5 V DC / 3 A
• Volumio Premium features included; external DAC required

Manufacturer information: Volumio.
