Denafrips Gaia 15th - Digital Digital Converter
Denafrips Gaia 15th - Digital Digital Converter
Compatible with a wide range of DAC brands and models. lt can be integrated into your system, allowing you to experience a signif icant improvement in sound quality
The 15th Anniversary

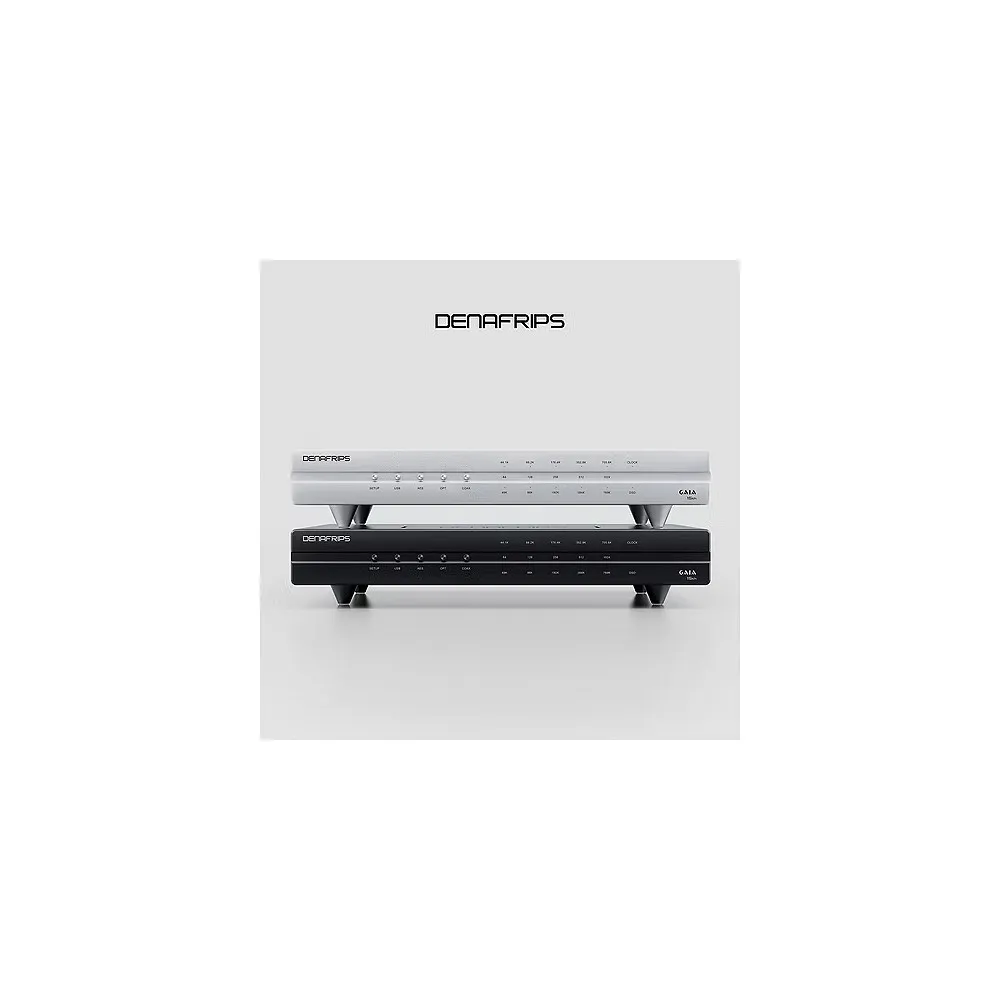

DENAFRIPS flagship Digital To Digital Converter is named GAIA15th. The refinement of its development spanned three years, during which we meticulously perfected its design.
GAIA15th incorporates the technologies present in DENAFRIPS highly acclaimed DAC, including exclusive FPGA DSP Processing, FIFO Buffer & Reclocking, and an exceptional USB Audio Interface Solution through the utilization of the advanced STM32F466 AMR-based MCU.
In celebration of DENAFRIPS's 15 years of exceptional digital audio expertise, the GAIA 15th Anniversary Edition incorporates highly sought-after sound quality the original GAIA had, and performance enhancements.
SPECIFICATIONS
| Description | Parameters |
|---|---|
| D/D Converter | Proprietary FPGA DSP Processing Architecture |
| FIFO Buffer and Reclock with Internal Crystal | |
| Precision Oven Controlled Crystal Oscillator OCXO | |
| Optical Isolated All Digital Input Interfaces | |
| Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU | |
| Licensed Thesycon USB Driver For Windows Platform | |
| Driverless On Mac & Linux | |
| Dual AES/EBU Output Supported | |
| External Clocks Input Supported | |
| 80VA UPOCC Copper O-Core Transformer | |
| DSD | DSD64 / 2.8224MHz (DoP) on Coax/AES/Opt Input & Output |
| Upto DSD512 / 22.5792MHz On USB Input & I²S Output | |
| PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input & Output |
| Up to 768KHz On USB Input & Up to 384KHz on I²S Output | |

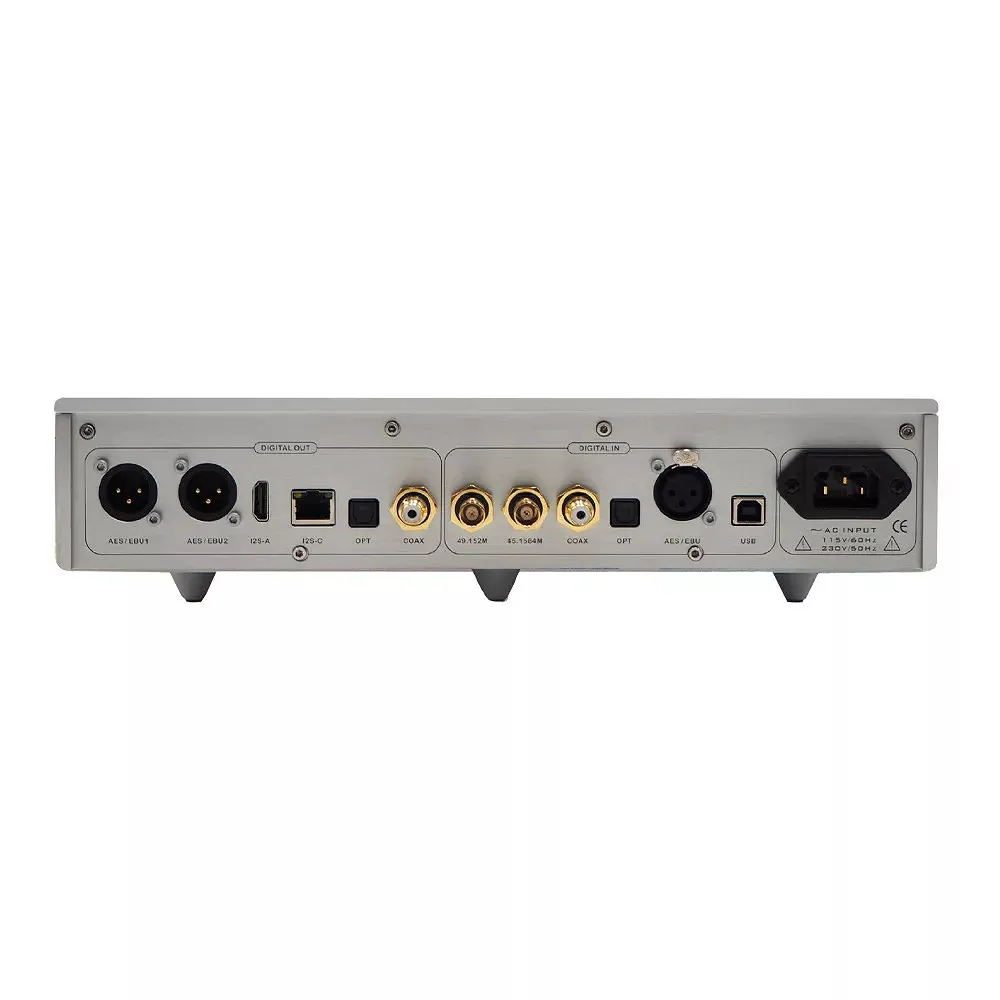

| Digital Input | Coax SPDIF via RCA |
| TOSLink x 1 | |
| AES/EBU x 1 | |
| USB2.0 Type B | |
| External Clock Input | 45.1548MHz |
| 49.152Mhz | |
| Digital Output | Coax SPDIF via RCA |
| TOSLink x 1 | |
| AES/EBU x 2 | |
| I²S HDMI LVDS Standard | |
| I²S RJ45 LVCMOS Standard | |
| AC Power Requirement | 100-240VAC, 50/60Hz (Worldwide Voltage) |
| Power Consumption | ≤20W |
| Dimension | 328×380×65 mm |
| Weight | 5.83 Kg |
| Color | Silver / Black |
-
