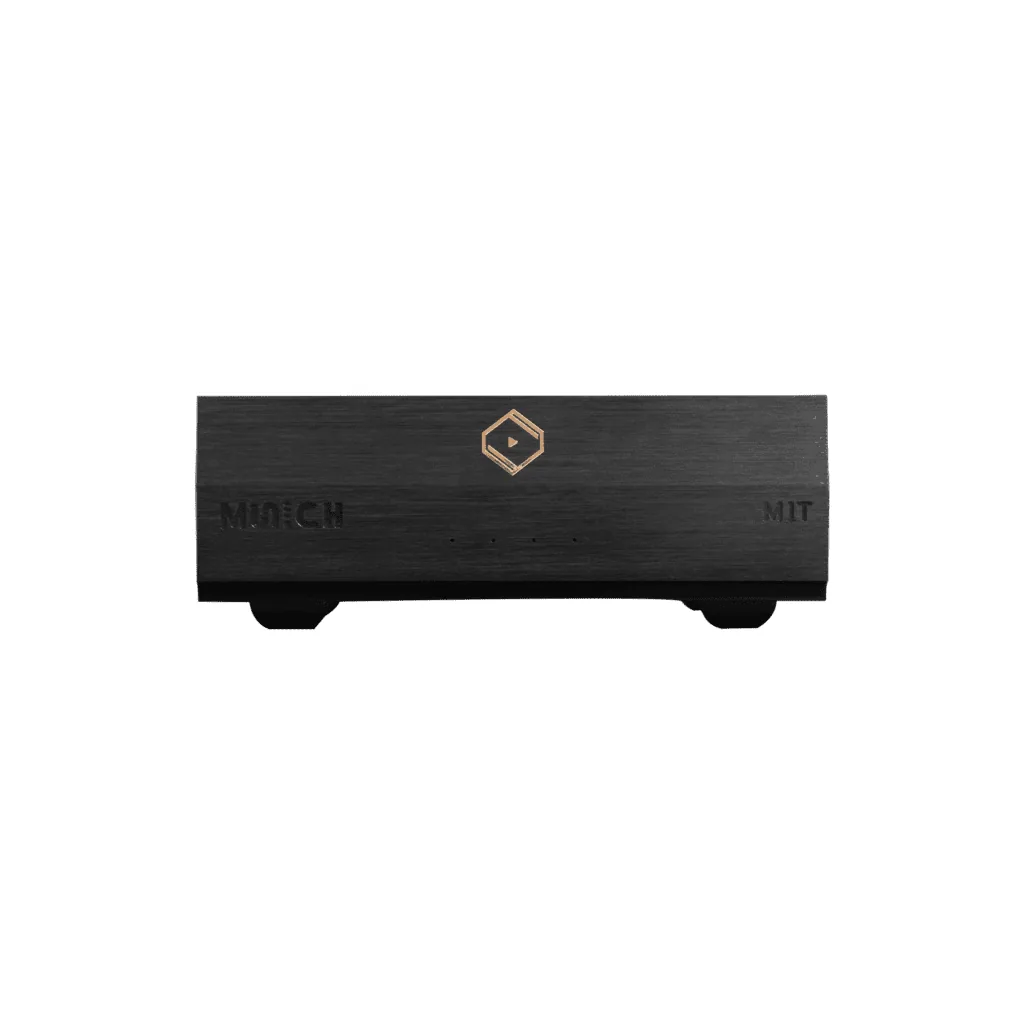

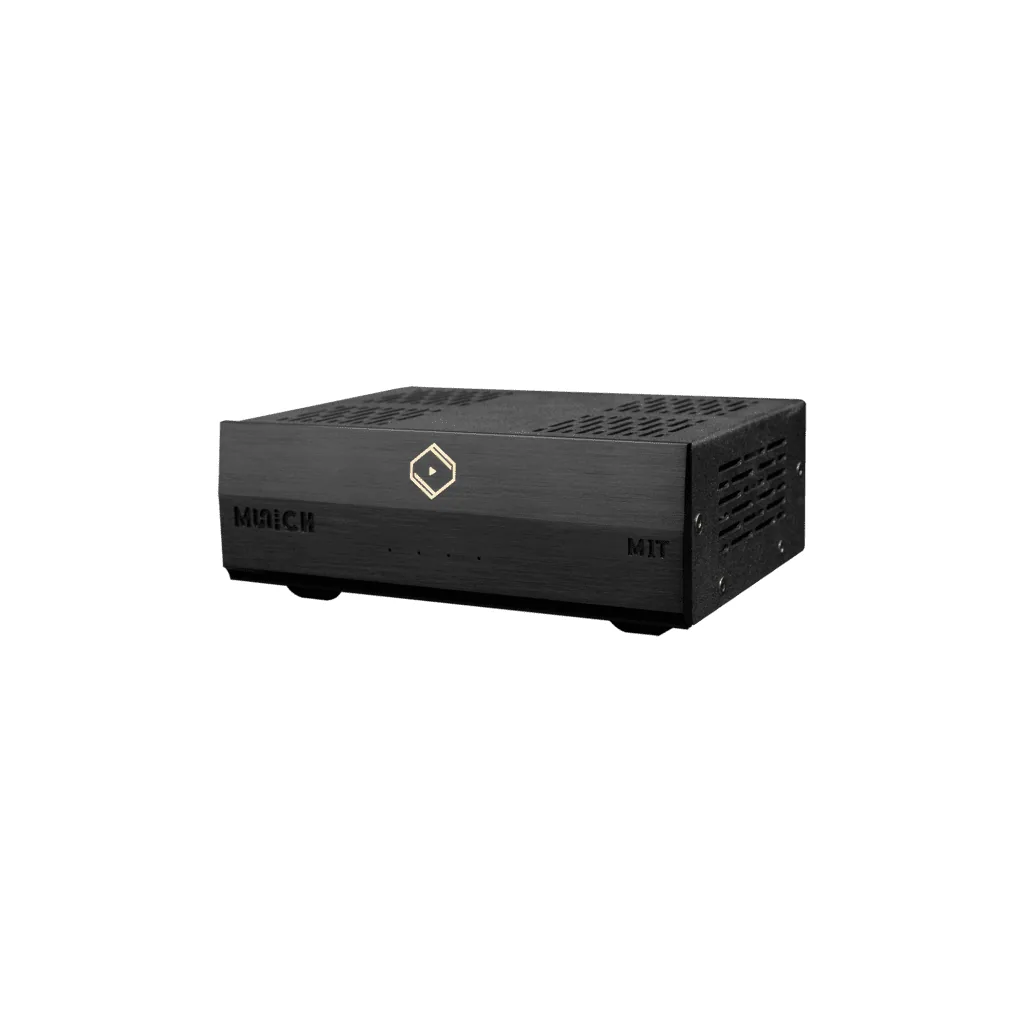

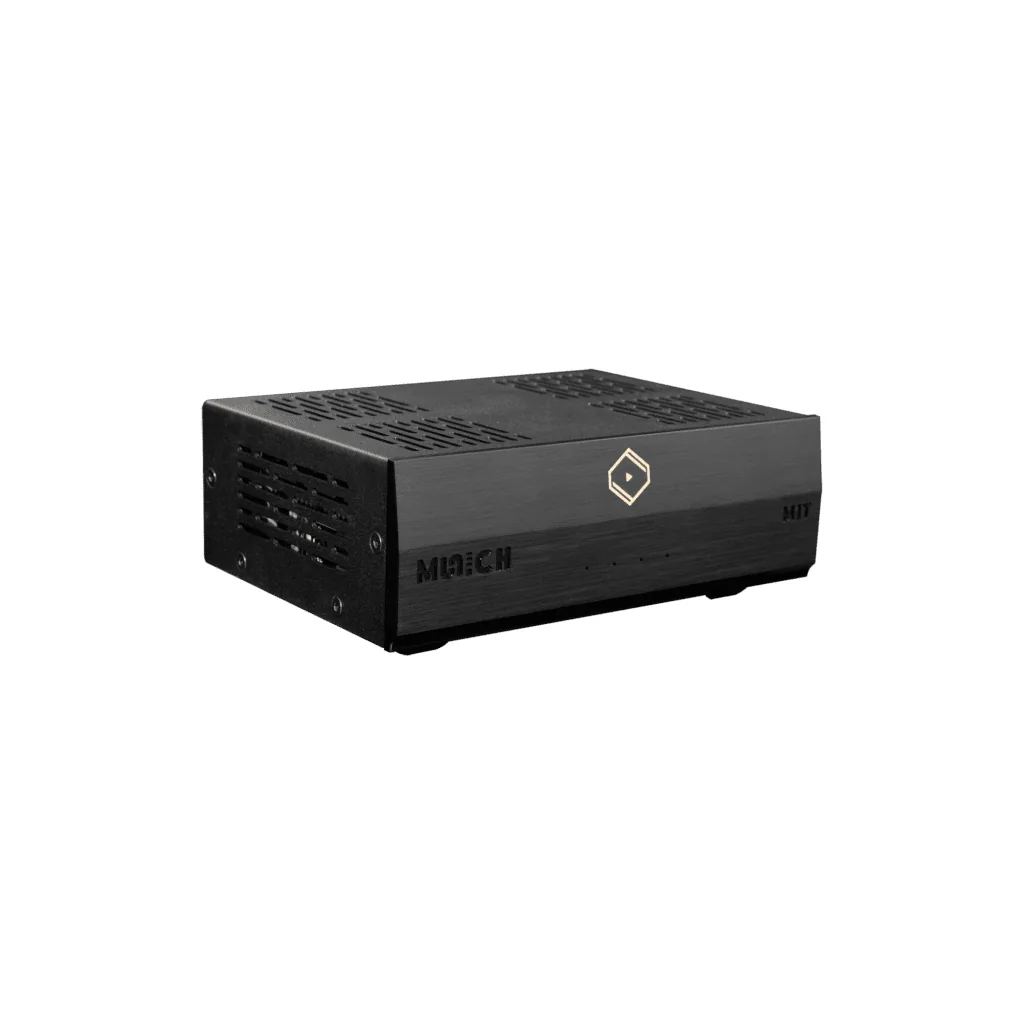

Munich M1T is a compact network audio transport intended to feed a separate DAC. Unlike the M1, it is presented as a digital transport rather than a streamer with analogue RCA and headphone outputs.
Munich M1T is a compact network audio transport intended to feed a separate DAC. Unlike the M1, it is presented as a digital transport rather than a streamer with analogue RCA and headphone outputs.
USB audio supports PCM up to 768 kHz and DSD256. AES/EBU, coaxial and I2S digital outputs provide alternative ways to connect compatible conversion equipment. The I2S connection requires a compatible DAC and must not be treated as a standard HDMI audio output.
The fanless hardware platform and VitOS Orbiter control keep network playback in a dedicated component.
| Available Color | Black |
|---|---|
| Power Consumption | 10W at max |

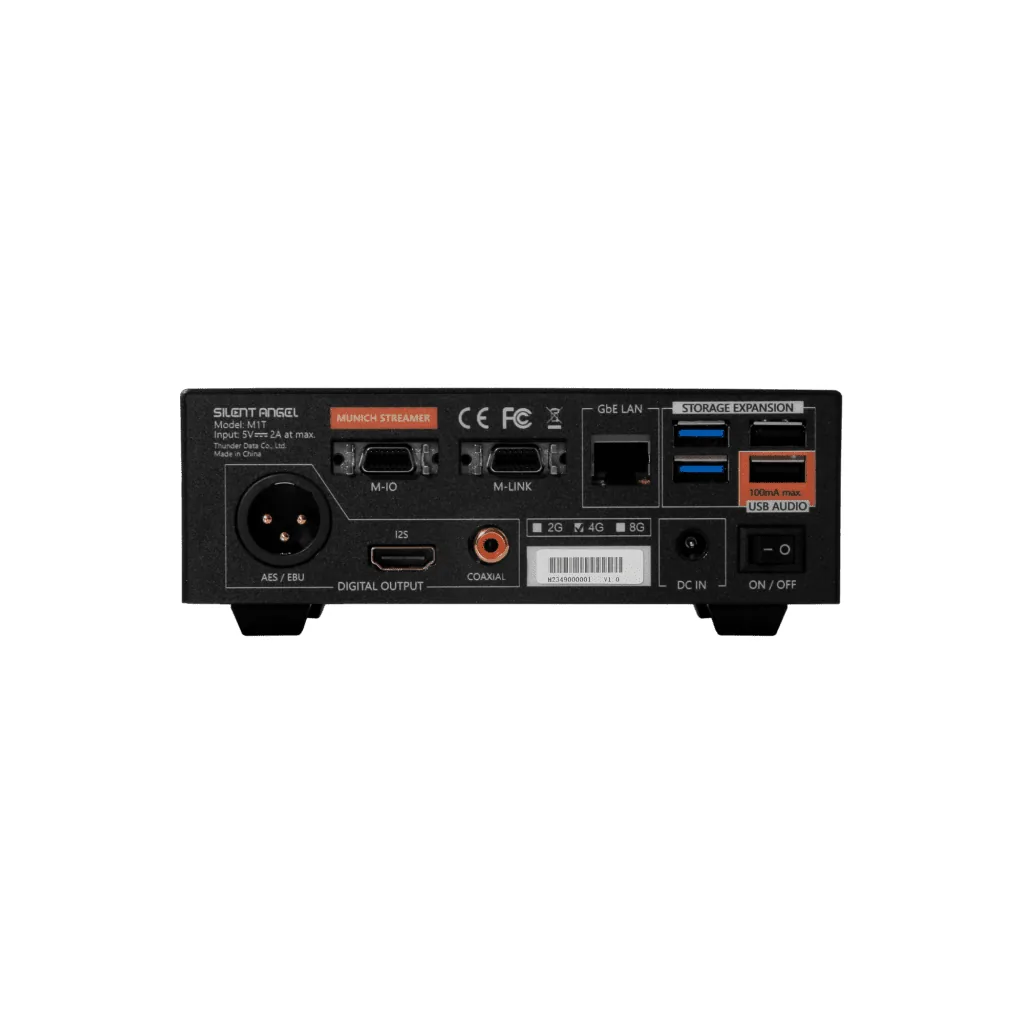

| Digital Outputs | AES/EBU port x 1 I2S port x 1* Coxial port x 1 - Supports up to PCM 384KHz and DSD 5.6M (DSD128) * I2S output signal is not compatible with Holo Audio's DAC * I2S using HDMI cable, not support HDMI protocol. |
| USB Audio | USB Audio port x 1 - Supports up to PCM 768KHz and DSD 11.2M (DSD256) |
| USB | USB 3.0 x 2 USB 2.0 x 1 - Above USB ports are for external storage |
| M-IO | M-IO x 1* *Reserved. To be enabled by future firmware upgrade |
| M-LINK | M-LINK x 1* *Reserved. To be enabled by future firmware upgrade |
| Ethernet | 1 GbE RJ45 x 1 |
| Music Format | AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD(DSF, DFF), WAV64, AIFF, CUE files, WMA, APE |
| Gapless Playback | Supported |
| MQA Handling | The M1T will transmit the signal to the DAC which supports MQA decoding. MQA is supported only by connecting to the USB-audio port. |
| LED Indicator | Mute LED x 1 Power LED x 1 Digital Output LED x 2* *Yellow light on when in DSD format / Green light on when in PCM format |
| Dimensions | 6.11(W) inch x 1.99(H) inch x 4.34(D) inch |
| Weight | 2.21 lbs |
Manufacturer: Silent Angel.
