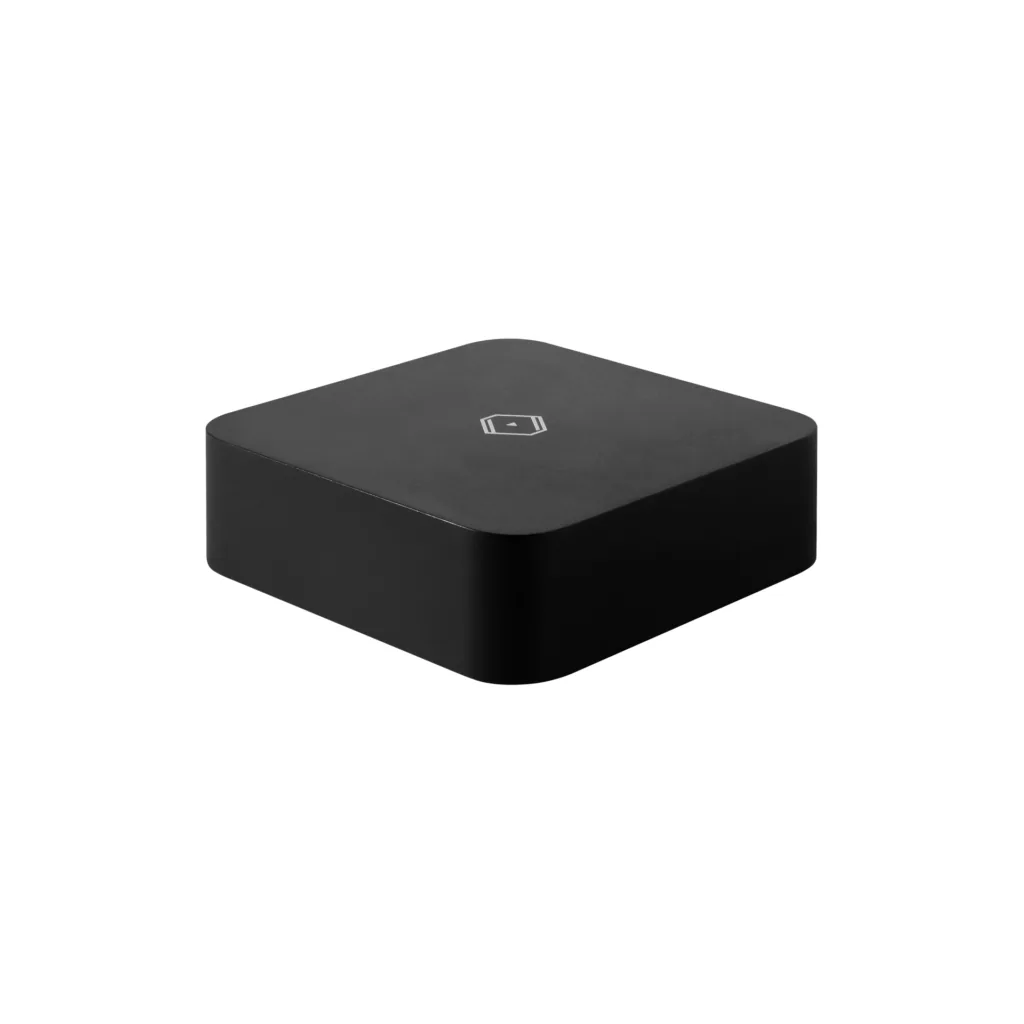

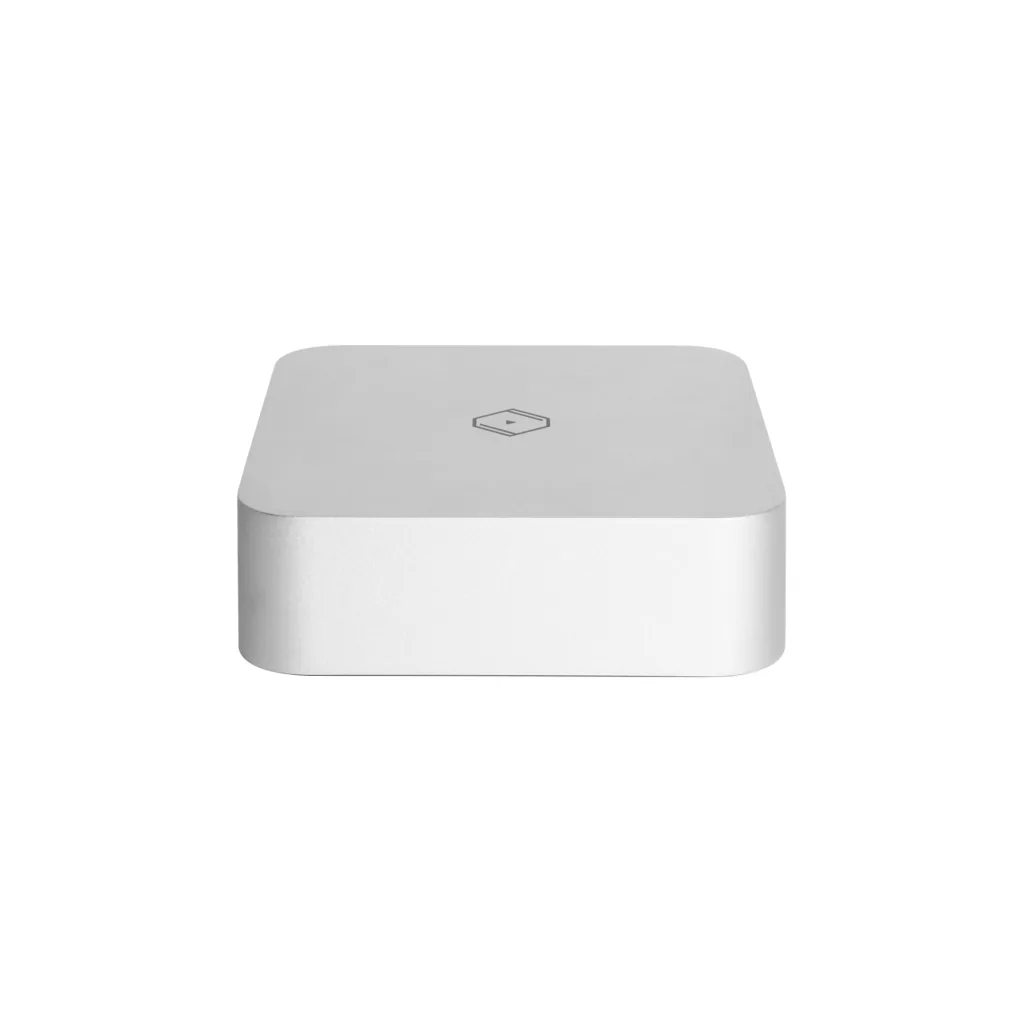

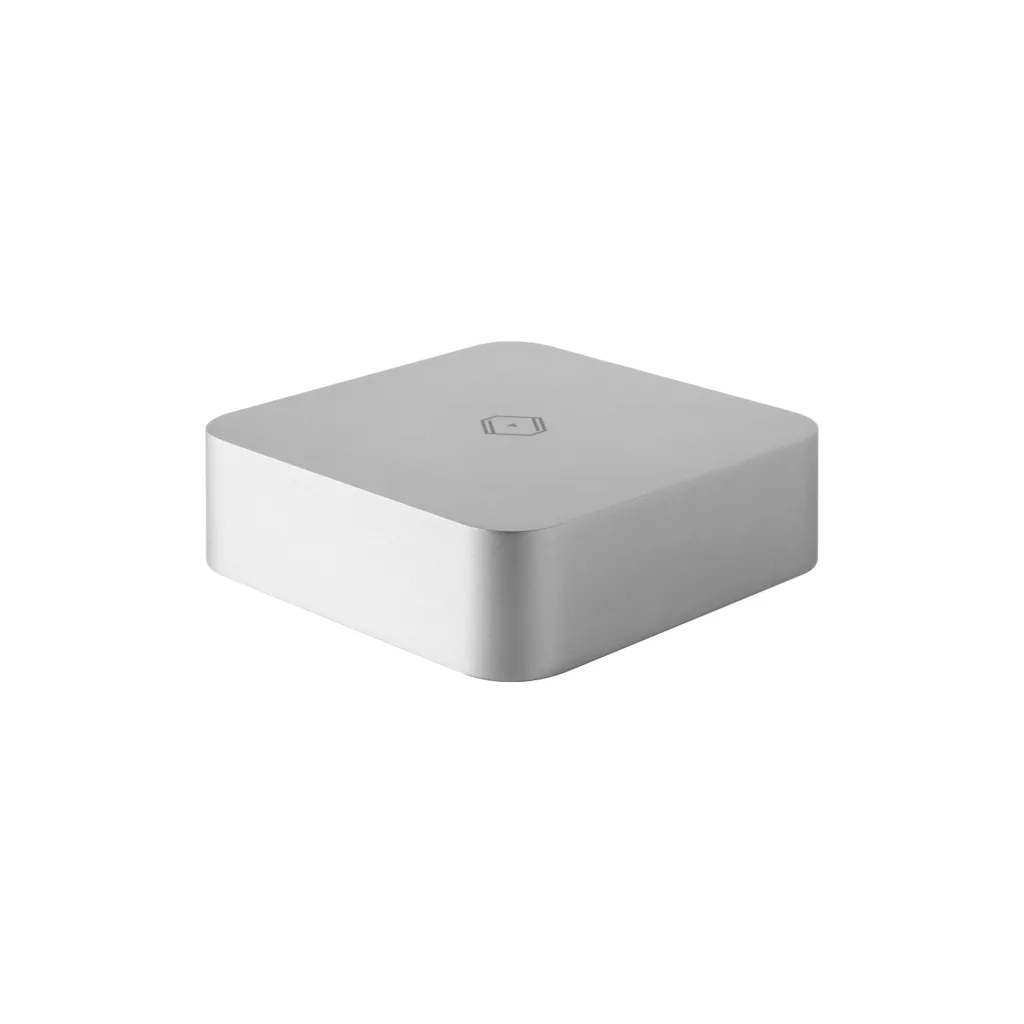

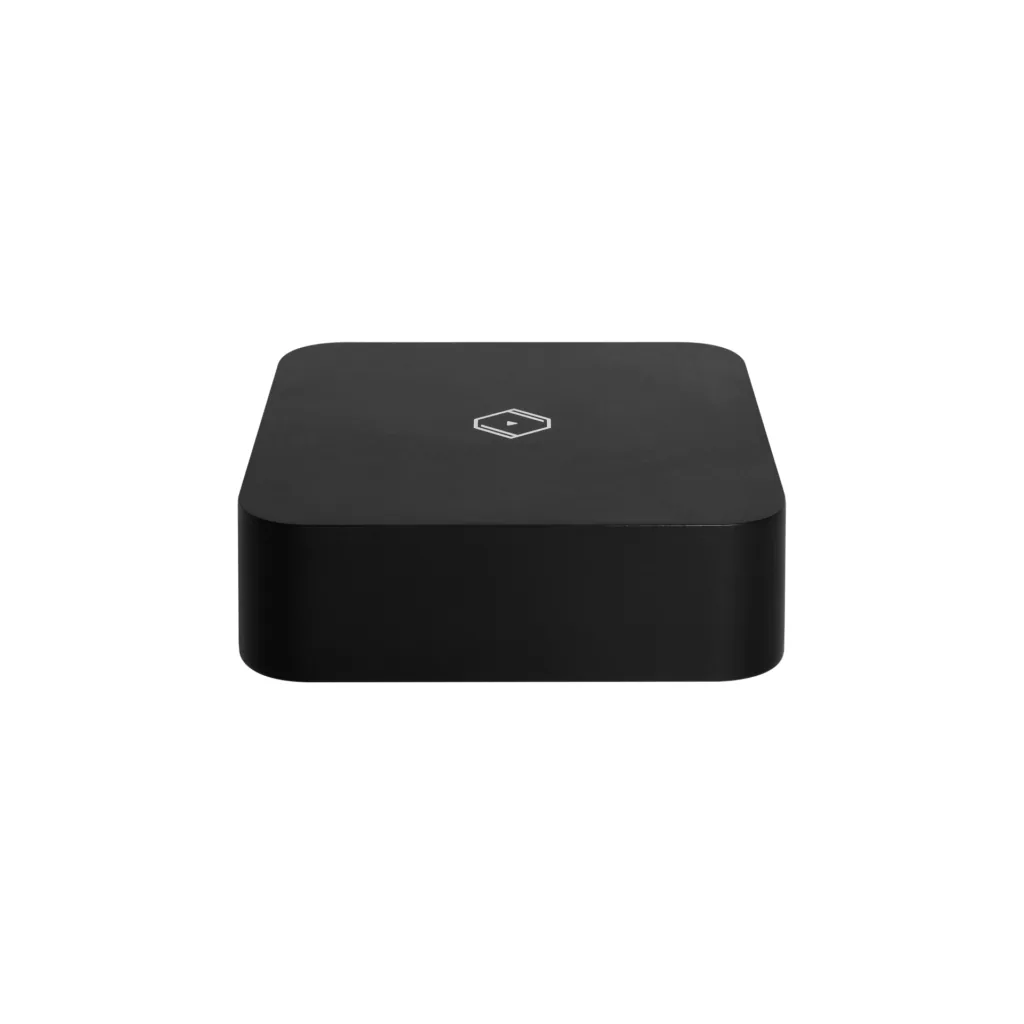

Genesis GC is a compact standalone master clock for compatible audio and network equipment. Separate 10 MHz and 25 MHz versions are available; the selected frequency must match the clock input of the connected device.
Genesis GC is a compact standalone master clock for compatible audio and network equipment. Separate 10 MHz and 25 MHz versions are available; the selected frequency must match the clock input of the connected device.
The manufacturer uses a temperature-compensated crystal oscillator and an isolated clock architecture in an aluminium enclosure. A single gold-plated BNC output provides the clock connection, while a separate 12 V DC input supplies power.
Black and Silver finishes are available. The enclosure measures 200 × 62 × 200 mm and weighs 2.8 kg. The two frequencies are alternatives, not a user-selectable dual-frequency output.
| Clock frequency | 10 MHz or 25 MHz, according to the selected version |
|---|---|
| Available Color | Black, Silver |
| Power Input | (DC) 12V/1A, 1.2W (5.5mm x 2.5mm connector) |
| Clock Output Port | 1 Port (BNC, gold-plated) |
| Dimensions | 200(W) * 62(H) * 200(D)mm 7.88(W) * 2.45(H) * 7.88(D) inches |
| Weight | Net: 2.8kg (6.18lbs) / Gross: 3.6kg (7.94lbs) |
Manufacturer: Silent Angel.
| Couleur | Black, Silver |
| Option | 10 MHz, 25 MHz |
| Marques | Silent Angel |
