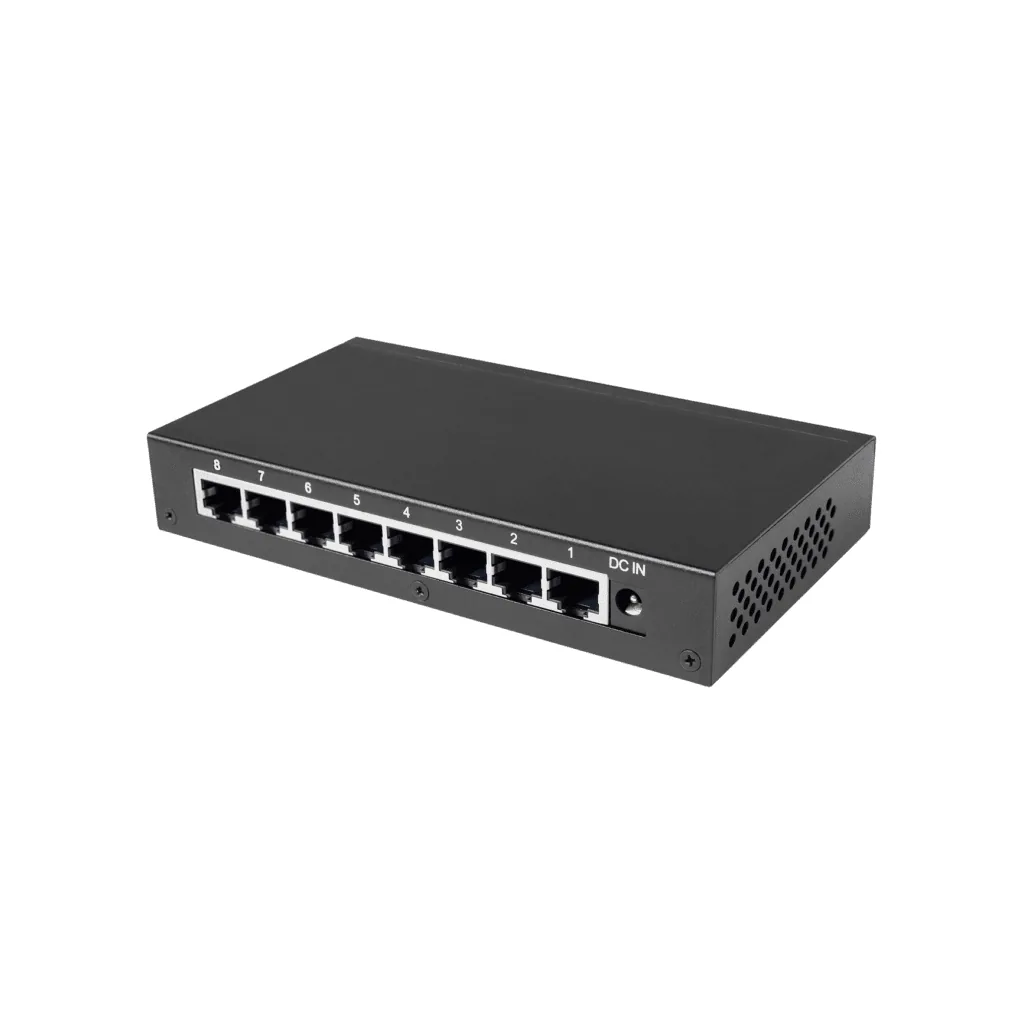

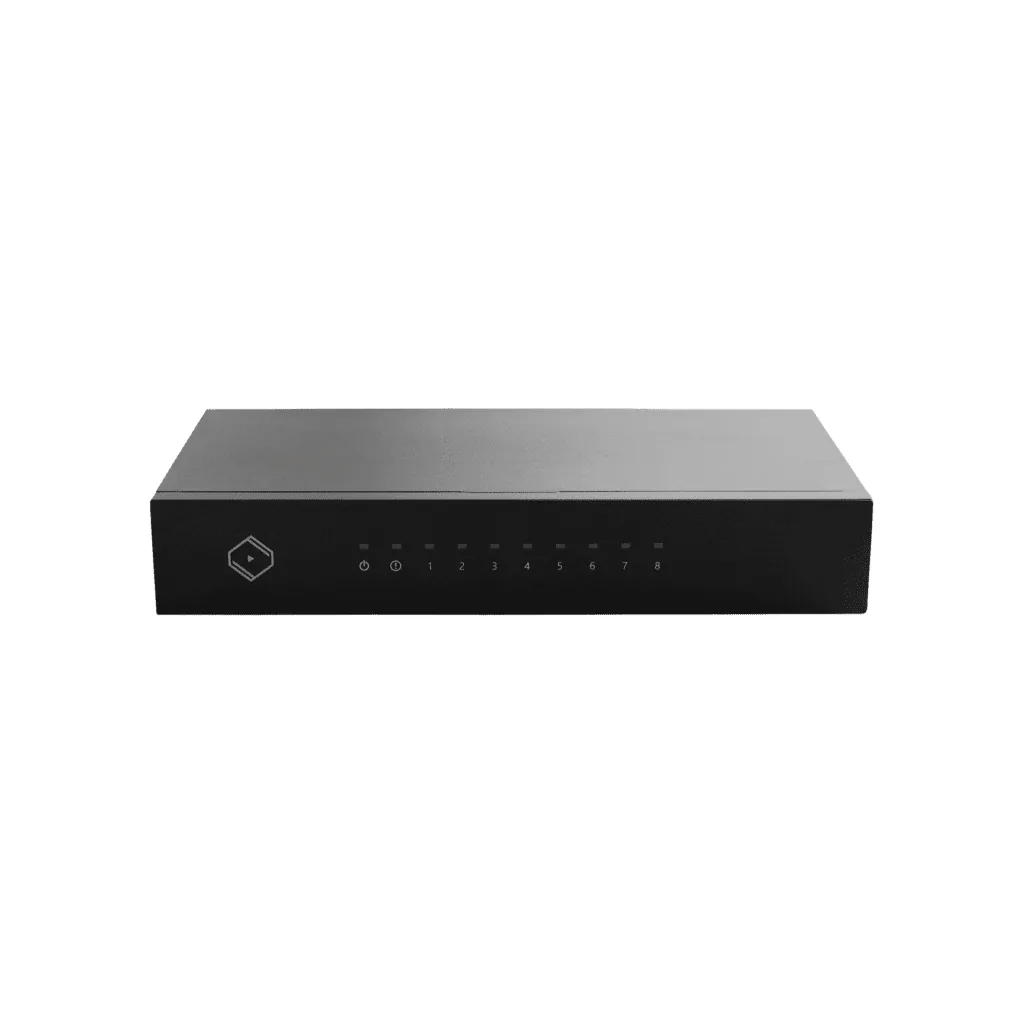

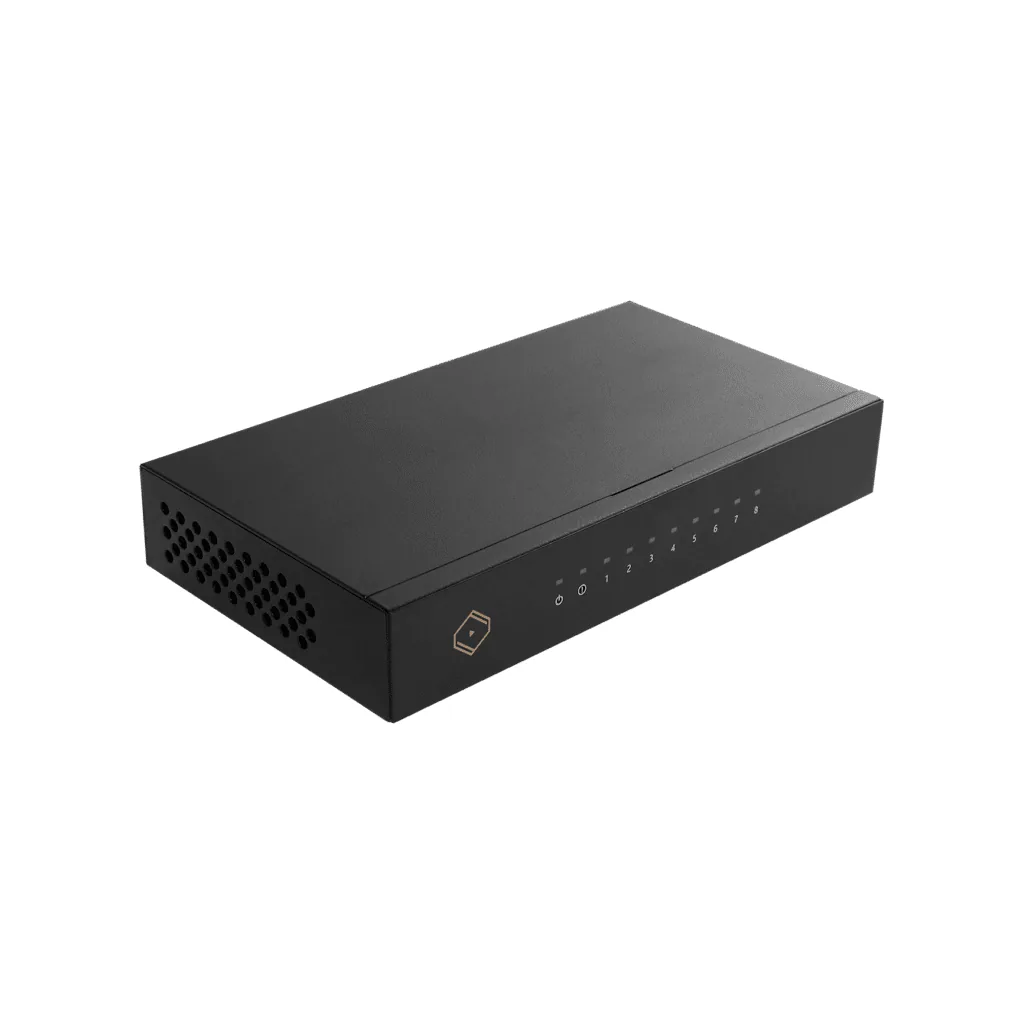

Silent Angel Bonn N8 - 8-Port Audio Network Switch

Silent Angel Bonn N8 - 8-Port Audio Network Switch

Bonn N8 is a compact eight-port Gigabit Ethernet switch designed for an audio network. Its metal enclosure houses a clock specified at 0.1 ppm accuracy at 25 °C, distinguishing it from a basic network distribution device.

371,07 €

Couleur
Couleur
Marques

Conditions générales
Garantie satisfait ou remboursé de 30 jours
Livraison : 2-3 jours ouvrables

Silent Angel combines its SANA noise absorber with noise-isolation circuitry for the power and clock sections. All eight Ethernet connections support 100 / 1,000 Base-T operation, so multiple network players and source components can share the switch.

The N8 uses an external 5 V DC supply and has a maximum specified power consumption of 5 W. Its 154.5 × 26 × 85 mm dimensions keep the enclosure small enough for a compact system. The Forester F1 is a separate compatible supply upgrade.

Technical specifications

Ethernet Ports	8 x Audio Grade 100 / 1000 Base-T
Main Clock Accuracy	0.1 ppm at 25 °C
EMI Absorber	Silent Angel Noise Absorber (SANA)
Noise Isolator	Main Power Circuit: 17.78 dB @ 100MHz x2 Clock Gen. Circuit: 20.79 dB @ 100MHz x2
Power Adaptor	Medical Grade Power Adaptor*
Power Input	External Power 5VDC at 1A
Power Consumption	Max. 5W
Product Dimension	6.09(W) inch x 1.03(H) inch x 3.35(D) inch 154.5(W) mm x 26(H) mm x 85(D) mm
Case Material	Metal in Black
Weight	2.21 lbs (1 KG)

Manufacturer: Silent Angel.

Spécifications

Couleur	Black, Black
Marques	Silent Angel
