NuPrime SW Ultimate - Managed Network Switch

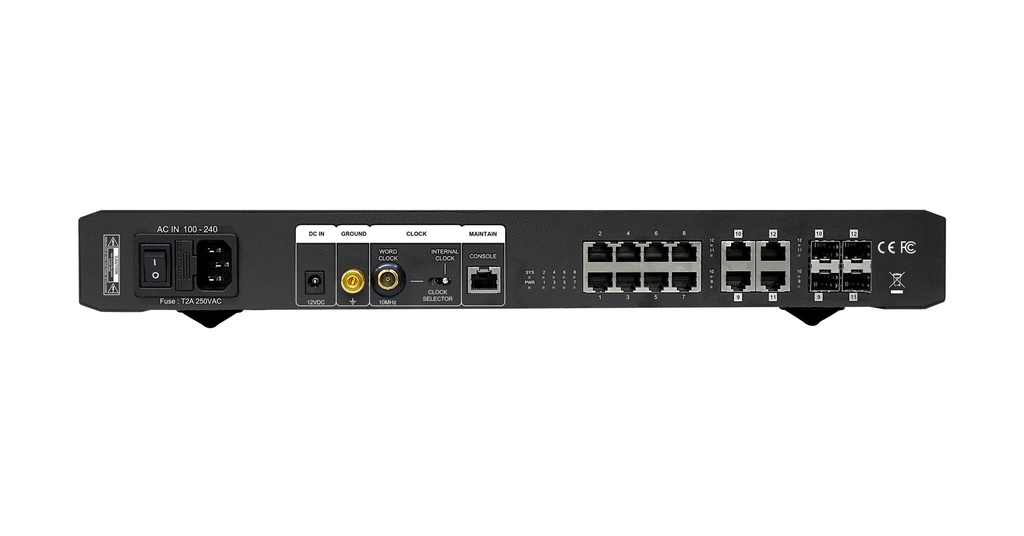

The NuPrime SW Ultimate is a managed Layer 3 Gigabit Ethernet switch in the Evolution series. It provides twelve RJ45 network ports, with ports 9–12 shared with four SFP fibre interfaces. Each shared pair uses either its copper or fibre connection, rather than adding four simultaneous ports to the twelve-port total.

Its Power Engine supply includes AC filtering and common-mode isolation, while an internal 25 MHz TCXO provides the clock reference. A BNC input and source selector allow connection of a compatible external 25 MHz square-wave clock. A dedicated grounding terminal and configurable network functions support integration into a network-audio system.

Specifications

• Twelve Gigabit RJ45 ports; four shared 1000BASE-X SFP interfaces
• Layer 2 and Layer 3 network management
• Internal 25 MHz TCXO clock
• External 25 MHz square-wave clock input via BNC
• Internal/external clock selector and grounding terminal
• AC input: 100–240 V, 50/60 Hz; maximum consumption: 10 W
• Dimensions (H × W × D): 61.5 × 430 × 369 mm
• Weight: 5.2 kg; Black or Silver
