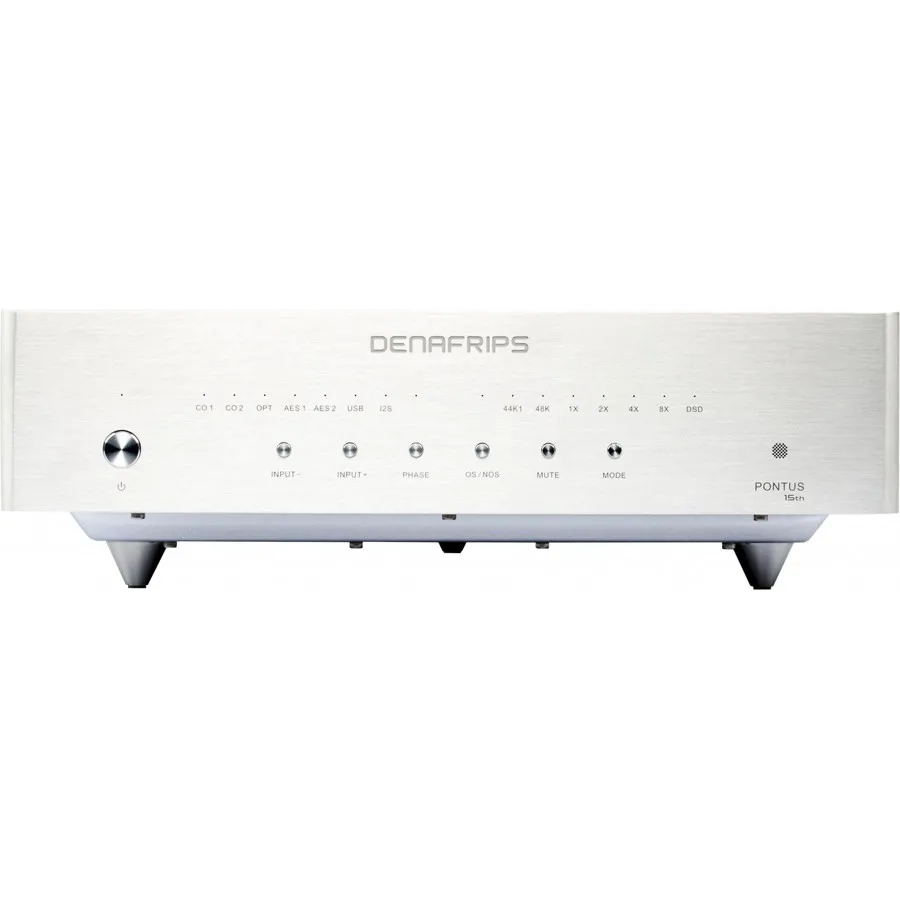

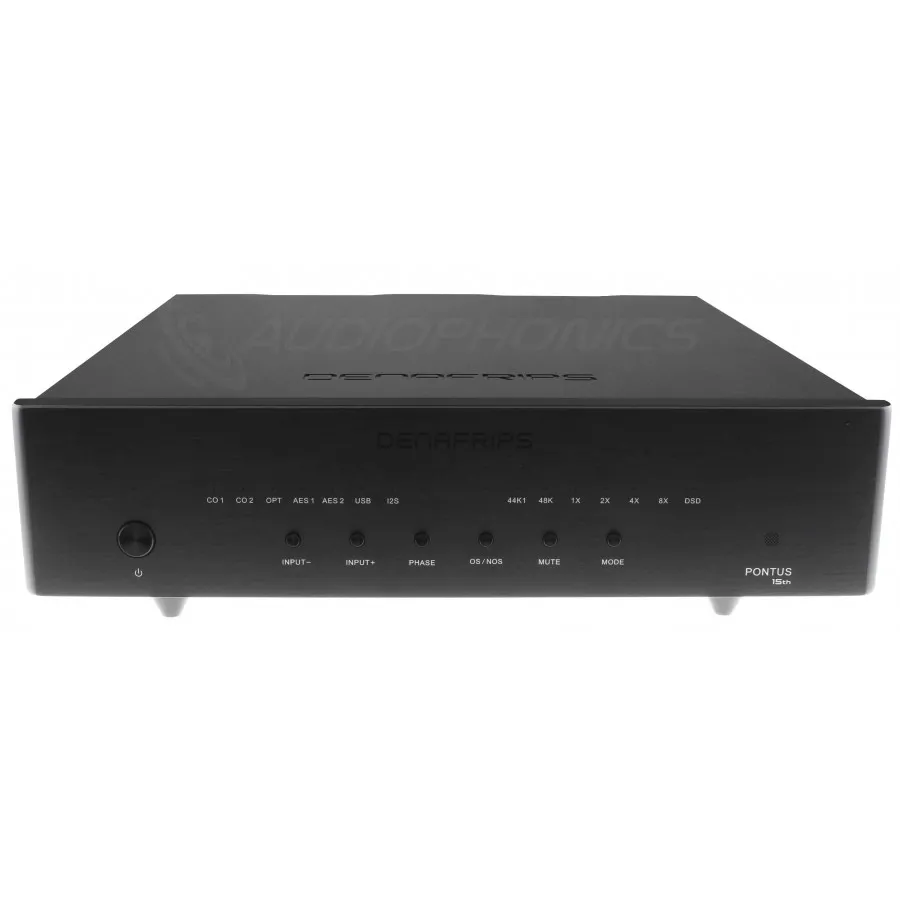

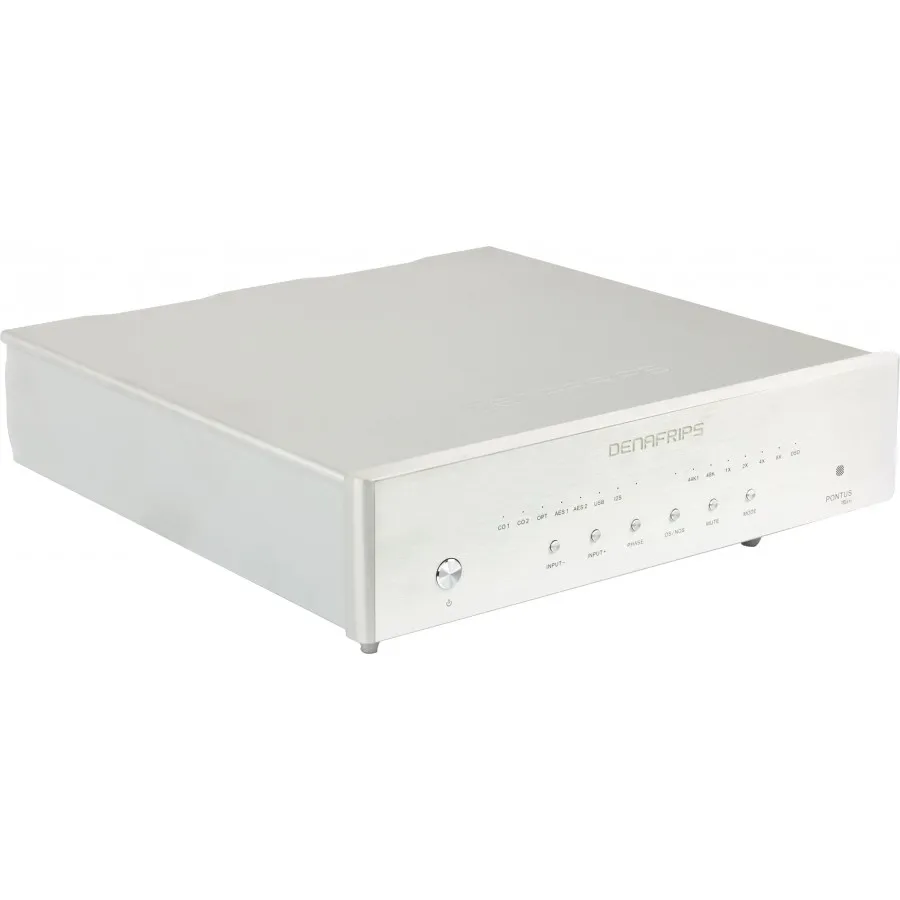

Denafrips Pontus 15th - R2R DAC
Denafrips Pontus 15th - R2R DAC
A Digital-to-Analog Converter for Music Enthusiasts
This DAC boasts a genuine balanced R-2R ladder network array design, with each channel equipped with an independent high-speed CPLD.It decodes digital signals through four sets of 0.005% R-2R networks,ensuring extremely low distortion and background noise in the audio signals.Every note resonates vividly and fully,leaping into the listener's ears.
maintain the original sampling rate of audio signals to the greatest extent. Additionally, all digital inputs undergo FIFO buffering and are re-clocked by an on-board CPLD crystal oscillator,providing exceptional jitter suppression capabilities. This minimizes the DAC's reliance on the source device's clock quality, further enhancing audio quality.
SPECIFICATIONS
| Description | Parameters |
|---|---|
| R-2R DAC | Proprietary R2R + DSD Architecture |
| True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters) | |
| Low Thermal Effect, High Precision Hand-Matched 0.005% Resistors | |
| Highlight | Encapsulated Ultra Low Noise Power Supply |
| Temperature Compensated Crystal Oscillator TCXO | |
| Adaptive FIFO Buffer and Reclocking | |
| DSD1024, PCM1536 Supports On USB & I²S Input | |
| Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU | |
| Licensed Thesycon USB Driver For Windows Platform | |
| Driverless On Mac & Linux | |
| Dual AES/EBU Input Supports | |
| Sharp/Slow Filters Option | |
| I²S Pinout Configuration | |
| I²S DSD Channel Swap Configuration | |
| DSD | DSD64 / 2.8224MHz (DoP) on Coax/AES/Opt Input |
| DSD1024 / 45.1584MHz * On USB & I²S Input Only | |
| PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input |
| 1536kHz* On USB & I²S Input | |
| NOTE* | USB Firmware V3.4.1 - PCM1536 / DSD1024 supports disabled for compatibility with macOS |

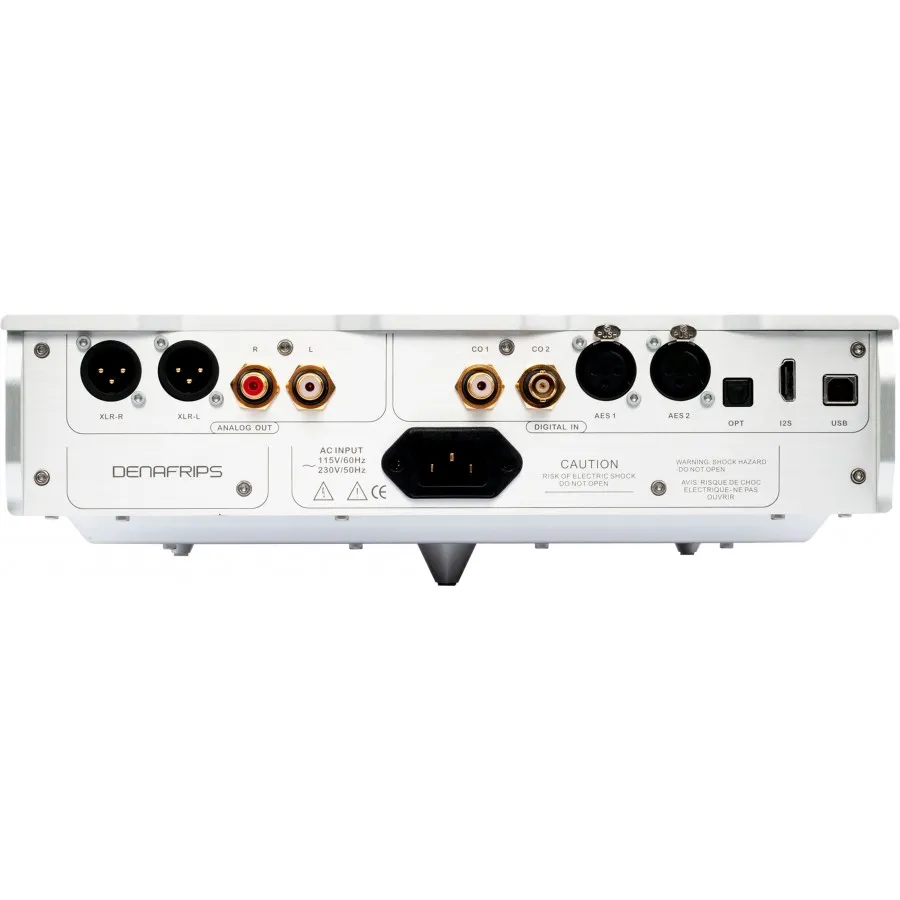

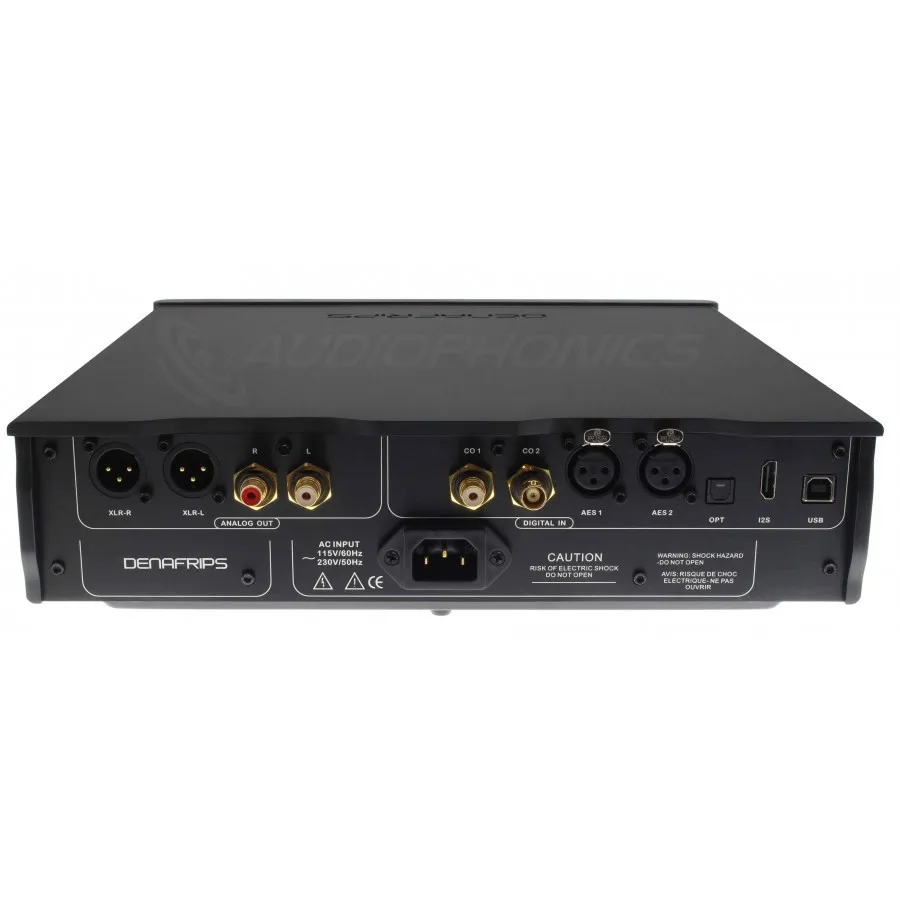

| Digital Input | Coax 1 via RCA |
| Coax 2 via BNC 75 Ω | |
| TOSLink x 1 | |
| AES EBU x 2 | |
| USB2.0 Type B | |
| I²S via HDMI LVDS | |
| Analog Output | RCA at 2.0Vrms, 625 Ω |
| XLR at 4.0Vrms, 1250 Ω | |
| Sampling Mode | Non-Oversampling NOS |
| Oversampling OS | |
| AC Power Requirement | 100-240VAC, 50/60Hz (Worldwide Voltage) |
| Power Consumption | ≤20W |
| Frequency Response | 20-70KHz -3dB |
| THD+N | <0.0025%(A) |
| S/N Ratio | ≥120dB(A) |
| Dynamic Range | >121dB |
| Stereo Crosstalk | ≥-110dB |
| Dimension | 320 x 330 x 80 mm |
| Weight | 11 Kg |
