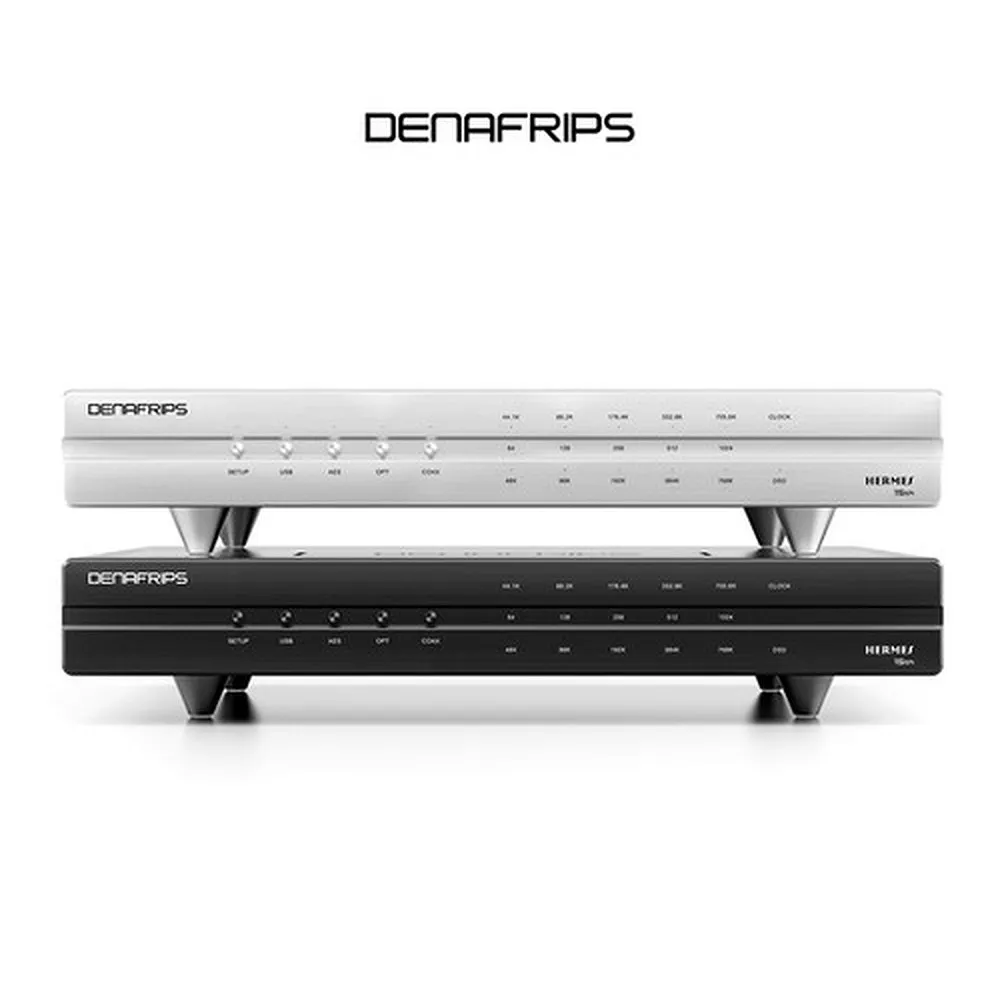

Denafrips HERMES 15th
The Central Power of Pure Digital Signal
The 15th Anniversary Mid-to-High-End Product
It completely replaces the original steel chassis, featuring a housing crafted through CNC precision machining from aluminum. The chassis undergoes anodization and fine-brushing, which not only significantly enhances mechanical stability, vibration resistance, and thermal dissipation but also reveals a substantial metallic luster, showcasing the brand's uncompromising pursuit of craftsmanship.
As a landmark mid-to-high-end release for our 15th anniversary, the HERMES 15th is equipped with an aluminum chassis sourced from the same series as DENAFRIPS' flagship models. It brings you flagship-grade construction at a mid-range, accessible price maintaining consistency with the DAC15TH.
This meticulous machining lays a solid foundation for superior sonic stability, long-term reliability, and effective electromagnetic shielding. The result is a dual upgrade in both visual and tactile experience, while simultaneously ensuring purer and more stable sound performance over time.
The Denafrips HERMES 15th
is a mid-tier Digital-to-Digital Converter (DDC)
that inherits the technical lineage of the flagship Gaia, combining compact design, refined craftsmanship, and Denafrips’ fifteen years of expertise in digital signal reconstruction It stands as a pure, powerful, and elegant digital hub at the heart of any high-end audio system.
Flagship-Grade FPGA Architecture —
Precision Reconstructed Digital Signal
At its core, the HERMES 15th is powered by a proprietary FPGA DSP architecture, paired with dual temperature-compensated femtosecond OCXO clocks and a FIFO buffering system. This combination achieves ultra-low phase noise and extreme timing precision, virtually eliminating jitter and restoring digital signals to their full vitality and integrity.
Comprehensive Connectivity — Flexibility for Every System

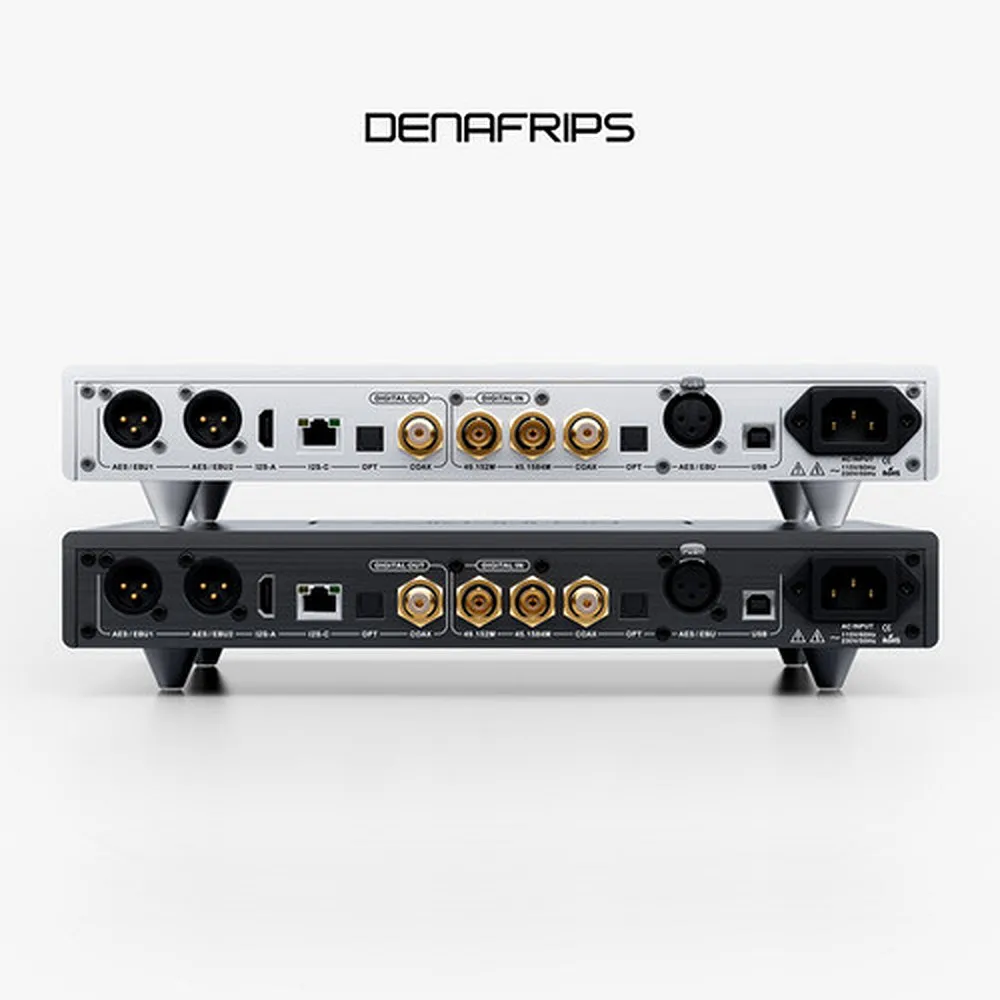

Inputs: USB / Coaxial / Optical / AES Outputs: Coaxial / Optical / AES / I²S (HDMI) Whether it’s connected to a computer, CD transport, or network streamer, the HERMES 15th serves as the digital signal hub of your system, bridging components seamlessly and elevating overall performance.
SPECIFICATIONS
| escription | Parameters |
|---|---|
| D/D Converter | Proprietary FPGA DSP Processing Architecture |
| FIFO Buffer and Reclock with Internal Crystal | |
| Precision Oven Controlled Crystal Oscillator OCXO | |
| Optical Isolated All Digital Input Interfaces | |
| Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU | |
| Licensed Thesycon USB Driver For Windows Platform | |
| Driverless On Mac & Linux | |
| Dual AES/EBU Output Supported | |
| External Clocks Input Supported | |
| 80VA UPOCC Copper O-Core Transformer | |
| DSD | DSD64 / 2.8224MHz (DoP) on Coax/AES/Opt Input & Output |
| Upto DSD512 / 22.5792MHz On USB Input & I²S Output | |
| PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input & Output |
| Up to 768KHz On USB Input & Up to 384KHz on I²S Output | |
| Digital Input | Coax SPDIF via RCA |
| TOSLink x 1 | |
| AES/EBU x 1 | |
| USB2.0 Type B | |
| External Clock Input | 45.1548MHz |
| 49.152Mhz | |
| Digital Output | Coax SPDIF via RCA |
| TOSLink x 1 | |
| AES/EBU x 2 | |
| I²S HDMI LVDS Standard | |
| I²S RJ45 LVCMOS Standard | |
| AC Power Requirement | 100-240VAC, 50/60Hz (Worldwide Voltage) |
| Power Consumption | ≤20W |
| Dimension | 330×255×65 mm |
| Weight | 4.35 Kg |
| Color | Black/Silver |
-
