Denafrips Athena 15th - Preamplifier
Denafrips Athena 15th - Preamplifier
Embark on an unparalleled audio journey with the Denafrips ATHENA Preamp, the pinnacle of sophistication and sonic prowess

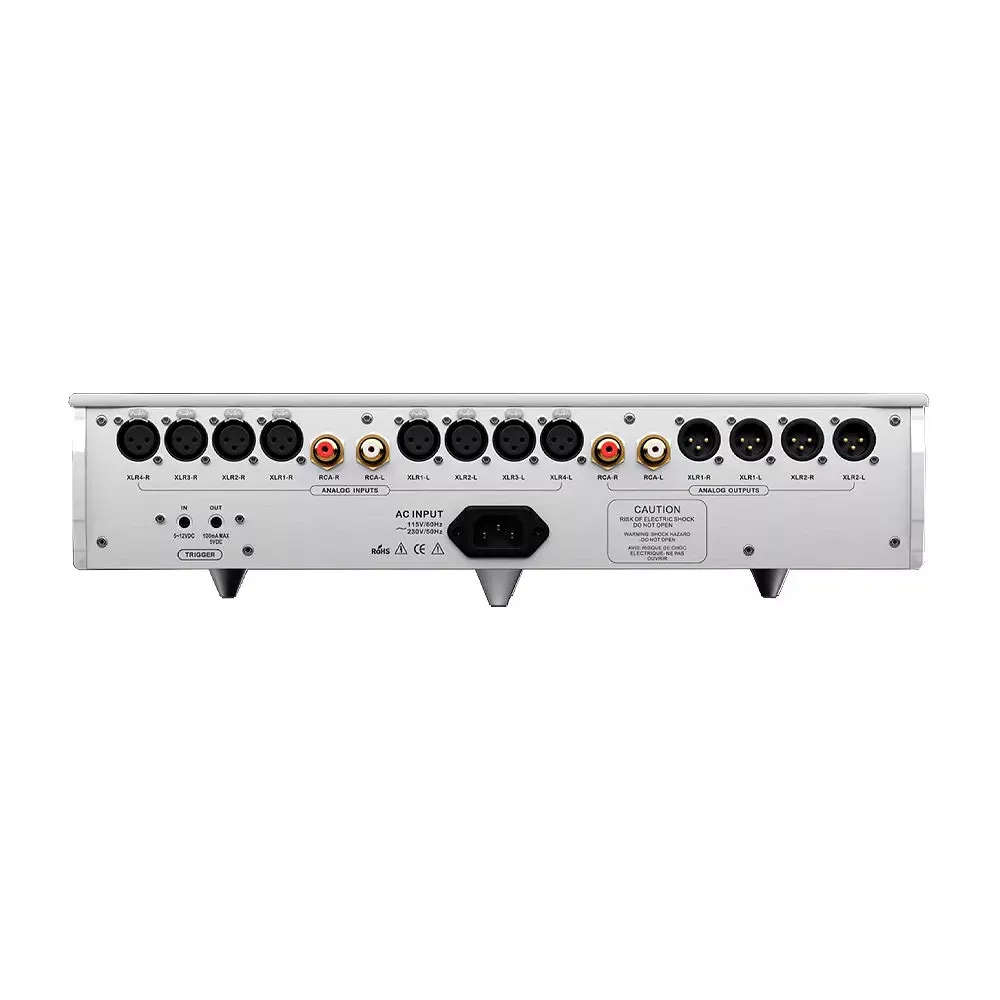

The ATHENA is equipped with not only 4 balanced XLR inputs but also 1 single-ended RCA input. On the output side, it also offers dual specifications of balanced XLR and single-ended RCA, which are compatible with various power amplifiers. This enables high-fidelity transmission of a "full balanced signal chain" and eliminates signal loss associated with unbalanced interfaces.
It also has reserved Trigger input/output interfaces, which allow for synchronized power-on/off with other Hi-End devices (such as power amplifiers and headphone amp), creating an integrated intelligent audio-visual system.
These interface designs not only reflect DENAFRIPS' integration of "craftsmanship inheritance and technological innovation" but also build a long-term upgradeable high-fidelity ecosystem for audio enthusiasts from three dimensions: "connectivity, purity, and expandability."
SPECIFICATIONS
| Description | Parameters |
|---|---|
| Highlight | Pure Class-A, True Balanced, Fully Discrete Flagship Line Stage |
| 60 Steps Microprocessor Controlled Relay Based Stepped Attenuator | |
| Precision Matched Military-Specs Metal Film Resistors & Components with Perfect Channel Balance And Low Distortion | |
| Remote Controlled | |
| Input | IN1 - XLR1 |
| IN2 - XLR2 | |
| IN3 - XLR3 | |
| IN4 - RCA | |
| PURE DIRECT - XLR4 | |
| Input Impedance | Single-Ended 12.2K Ohms |
| Balanced - 60K Ohms | |
| Output | RCA at 2.0Vrms |
| XLR at 4.0Vrms | |
| Output Impedance | Single-Ended 200 Ohms |
| Balanced - 400 Ohms | |
| Gain | Unity Gain, 0dB |
| AC Power Requirement | 100-240VAC, 50/60Hz (Worldwide Voltage) |
| Power Consumption | 1W (Idle), 25W (Operational) |
| Frequency Response | 10-85k（-0.3dB） |
| THD+N | <0.00012%（A） |
| S/N Ratio | ≥127dB(A) |
| Dynamic Range | >121dB |
| Stereo Crosstalk | -110dB |
| Dimension | 433×385×110 mm |
| Weight | 18 Kg |
| Color | Silver / Black |
-
