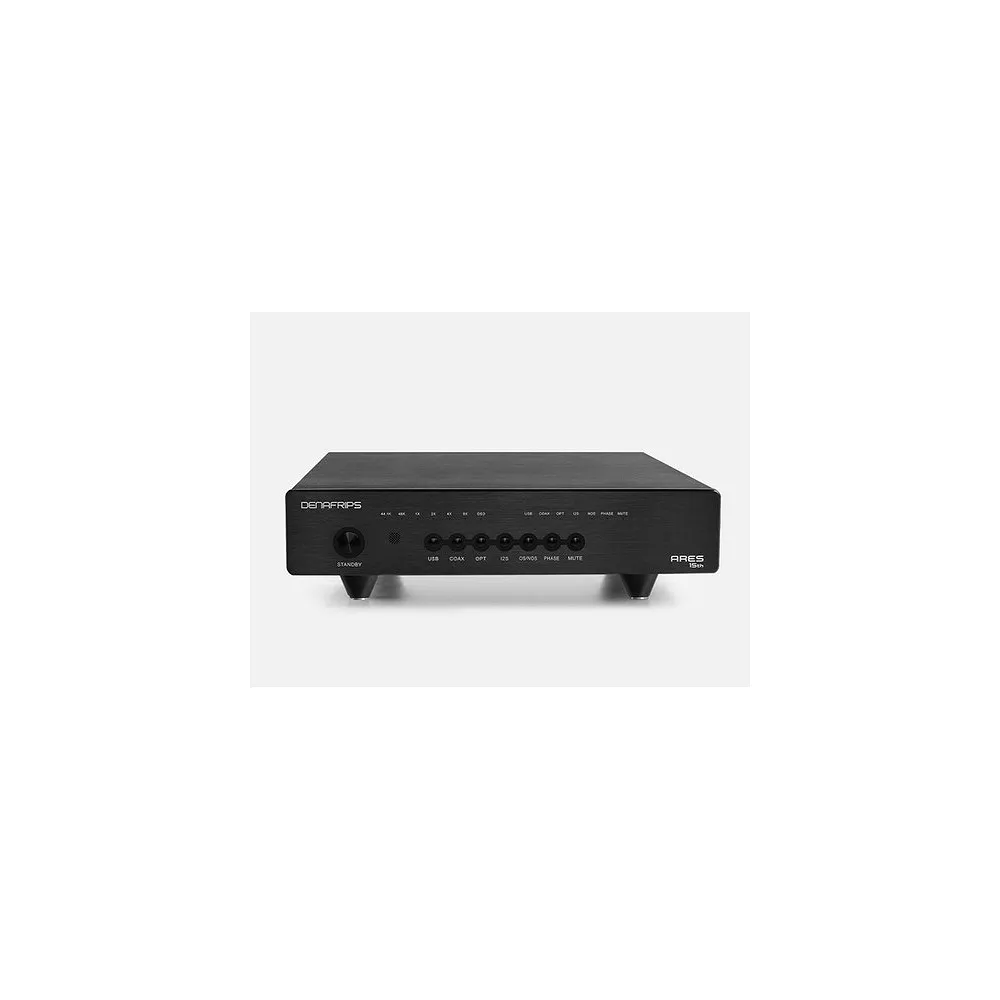

Denafrips Ares 15th - R2R DAC
Denafrips Ares 15th - R2R DAC
The ARES15th redefines the DAC standard with its remarkable performance enhancement
The ARES15th utilizes cutting-edge audio technology and precision craftsmanship to achieve a level of audio quality that far surpasses its peers. Whether it's the deep, powerful bass, the smooth and detailed mids, or the clear and transparent highs, every audio detail is perfectly reproduced, delivering an unforgettable listening experience.
SPECIFICATIONS
| Description | Parameters |
|---|---|
| R-2R DAC | Proprietary R2R + DSD Architecture |
| True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters) | |
| Low Thermal Effect, High Precision Hand-Matched 0.01% Resistors | |
| LPNO Crystal 45.1548MHz, 49.152Mhz | |
| Highlight | Low Noise Power Supply |
| Digital Signal Processing via FPGA | |
| Adaptive FIFO Buffer and Reclocking | |
| DSD1024, PCM1536 Supports On USB Input | |
| Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU | |
| Licensed Thesycon USB Driver For Windows Platform | |
| Driverless On Mac & Linux | |
| DSD | DSD64 / 2.8224MHz (DoP) On All Input |
| DSD1024 / 45.1584MHz * On USB nput | |
| PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input |
| 1536kHz* On USB Input | |
| Digital Input | Coax x 1 |
| TOSLink x 1 | |
| I²S x 1 | |
| USB2.0 Type B | |
| Analog Output | RCA at 2.0Vrms, 625 Ω |
| XLR at 4.0Vrms, 1250 Ω | |
| Sampling Mode | Non-Oversampling NOS / Oversamping OS |
| Filter Selection | Slow / Sharp |
| AC Power Requirement | 100-240VAC, 50/60Hz (Worldwide Voltage, Manual Selector) |
| Power Consumption | ≤20W |
| Frequency Response | 20-70KHz (+1/-3dB) |
| THD+N | <0.002%(A) |
| S/N Ratio | ≥115dB(A) |
| Dynamic Range | >119dB |
| Stereo Crosstalk | <-110dB |
| Dimension | 230×220×60 mm |
| Weight | 3.5 Kg |
| Color | Black / Silver |
