Denafrips Arcas - Streamer
Denafrips Arcas - Streamer
"ARCAS, DENAFRIPS' high-end streamer, is meticulously designed to offer an unparalleled sound experience, prioritizing exceptional audio quality above all else."
ARCAS represents a significant advancement from the already impressive ARCE streamer, offering enhanced features tailored for discerning audiophiles.
Both models share support for popular streaming protocols like Roon Bridge , HQPlayer NAA, Airplay, and DLNA, ensuring a versatile playback experience.
However, ARCAS distinguishes itself with additional premium components and expanded connectivity options. Featuring DENAFRIPS' custom-made, hand-picked OCXO (Oven Controlled Crystal Oscillator) for superior timing accuracy, Arcas provides more versatile digital outputs including duo I2S and duo AES/EBU.
These advancements empower users to effortlessly enjoy their music library with uncompromised sound quality and connectivity.
SPECIFICATIONS
| Description | Parameters |
|---|---|
| ARCE Streamer | Proprietary Streamer Module developed by DENAFRIPS |
| Tailored Operating System (OS) optimized for sound quality | |
| UPOCC O-Core Transformer, Low Noise LDO Power Supply | |
| OCXO Oven Controlled Crystal Oscillators 45.1548MHz, 49.152Mhz | |
| Streaming Services Supported | roon Bridge (roon Ready pending) |
| HQPlayer NAA | |
| AirPlay (16/44.1kHz) | |
| DLNA (16/44.1kHz) | |
| DSD | DSD64 / 2.8224MHz (DoP) on All Outputs |
| DSD512 on I²S Output | |
| PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz on All Outputs |
| 384kHz on I²S Output | |

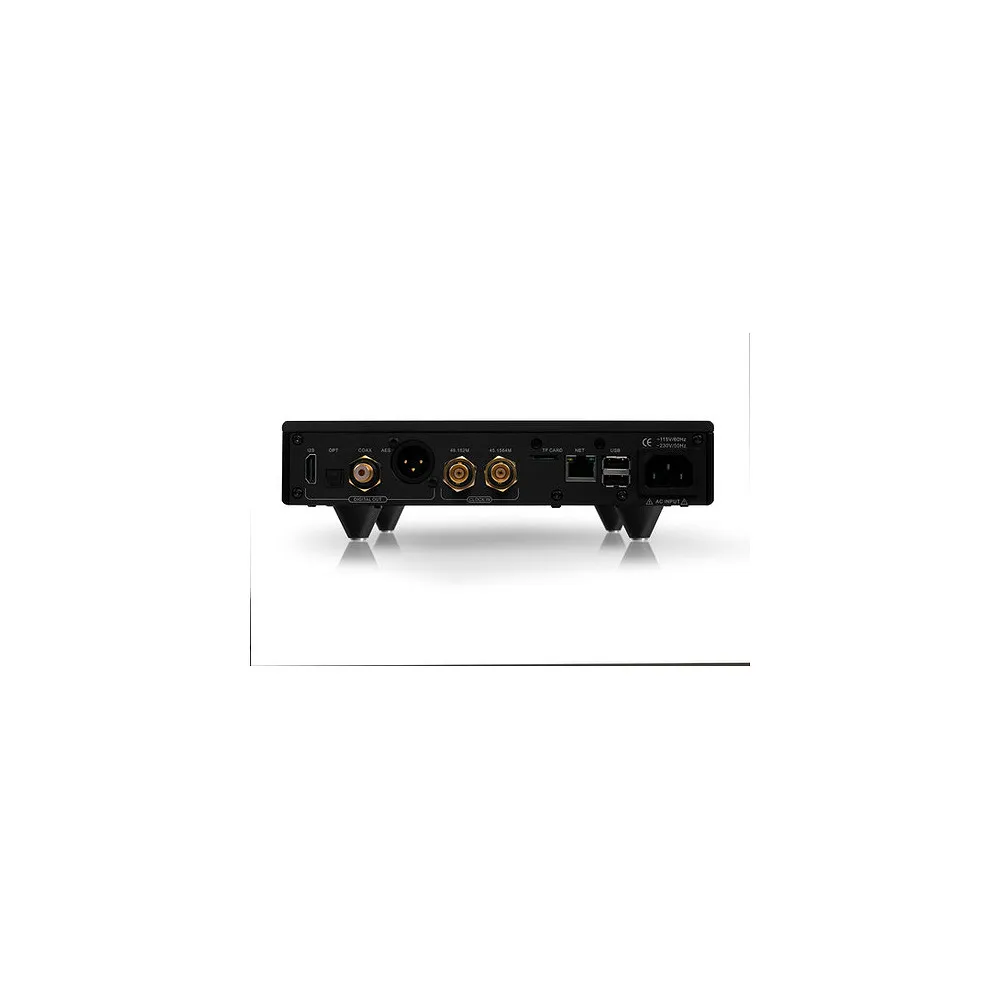

| Digital Output | Coax x 1 |
| AES/EBU x 2 | |
| TOSLink x 1 | |
| I²S LVDS over HDMI Connector x 1 | |
| I²S LVDS over RJ45 Connector x 1 | |
| Internet Connection | Ethernet RJ45 |
| Storage Files Playback | USB Storage, SD Card, Network shared folder NAS |
| AC Power Requirement | 100-240VAC, 50/60Hz (Worldwide Voltage, Auto-Select) |
| Power Consumption | ≤20W |
| Dimension | 235×340×65 mm |
| Weight | 4.5 Kg |
| Color | Black / Silver |
-
