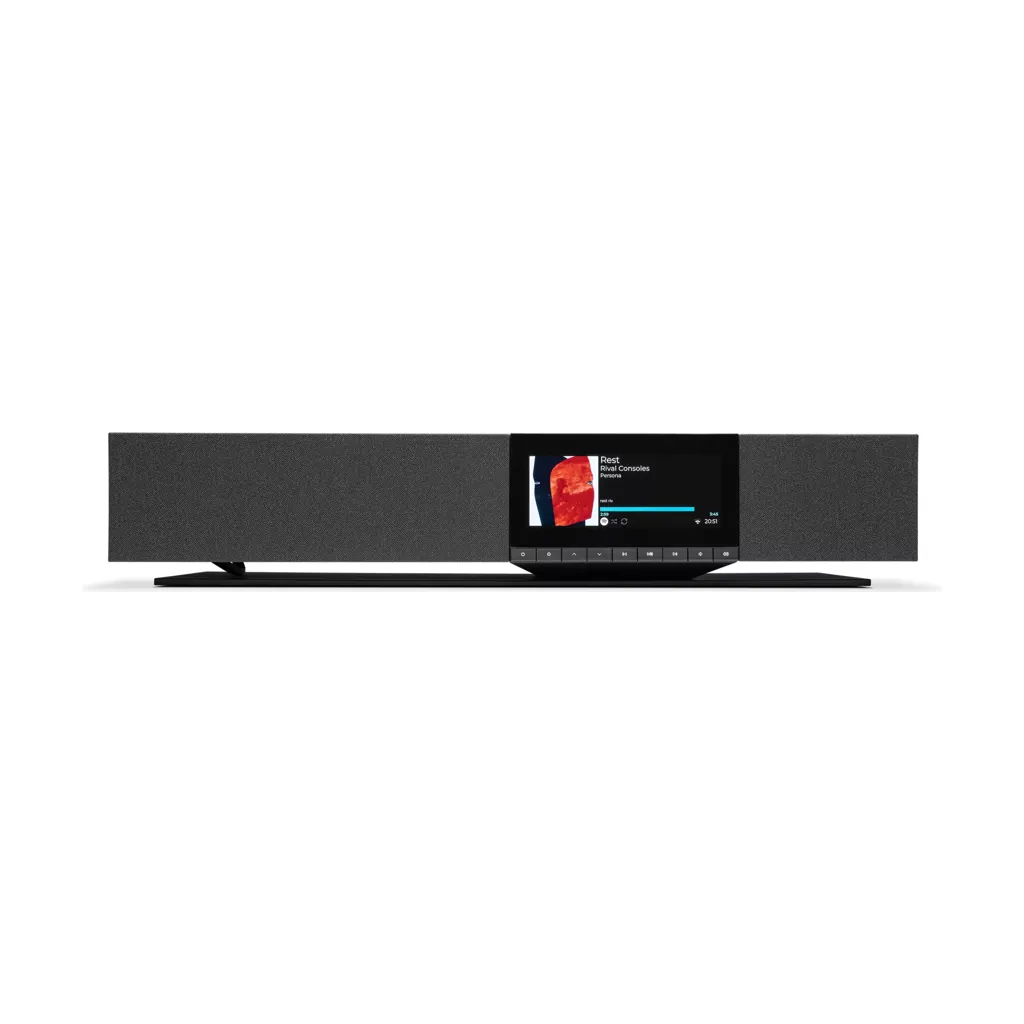

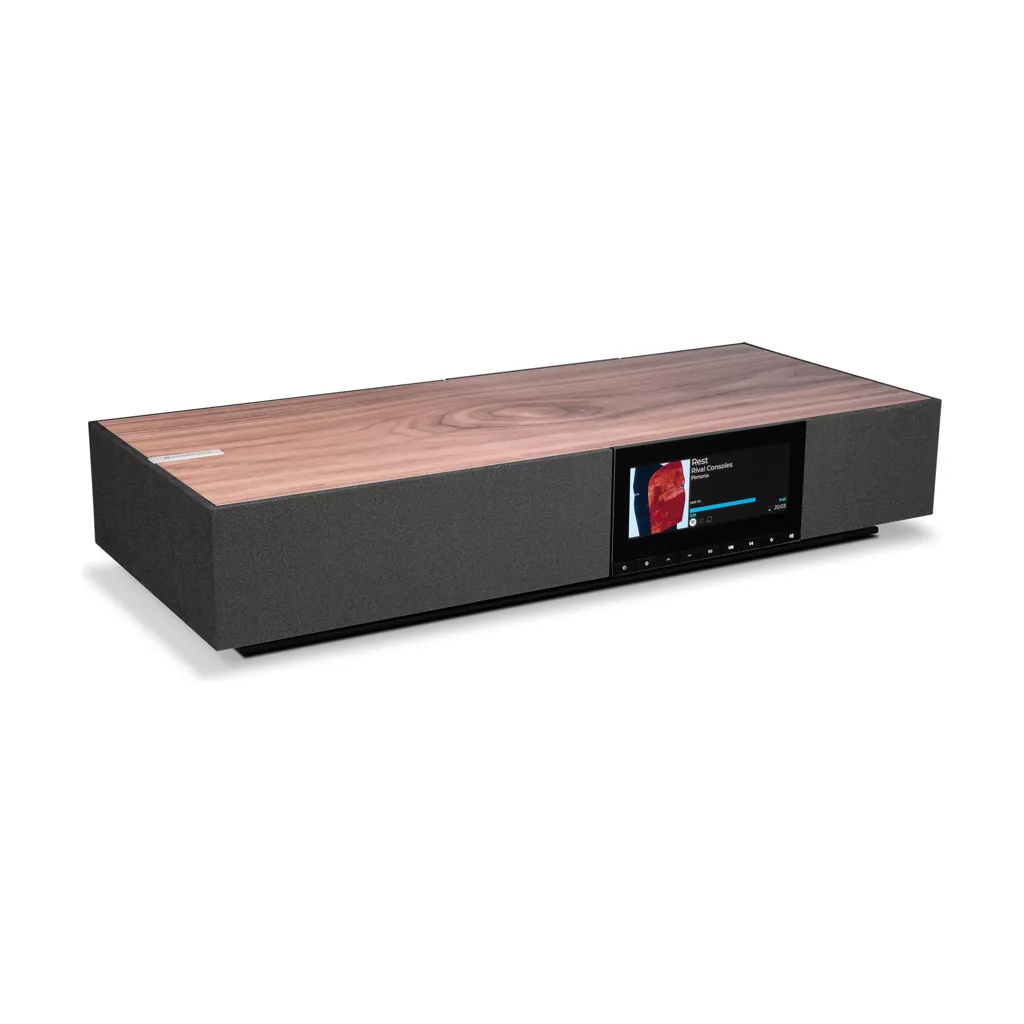

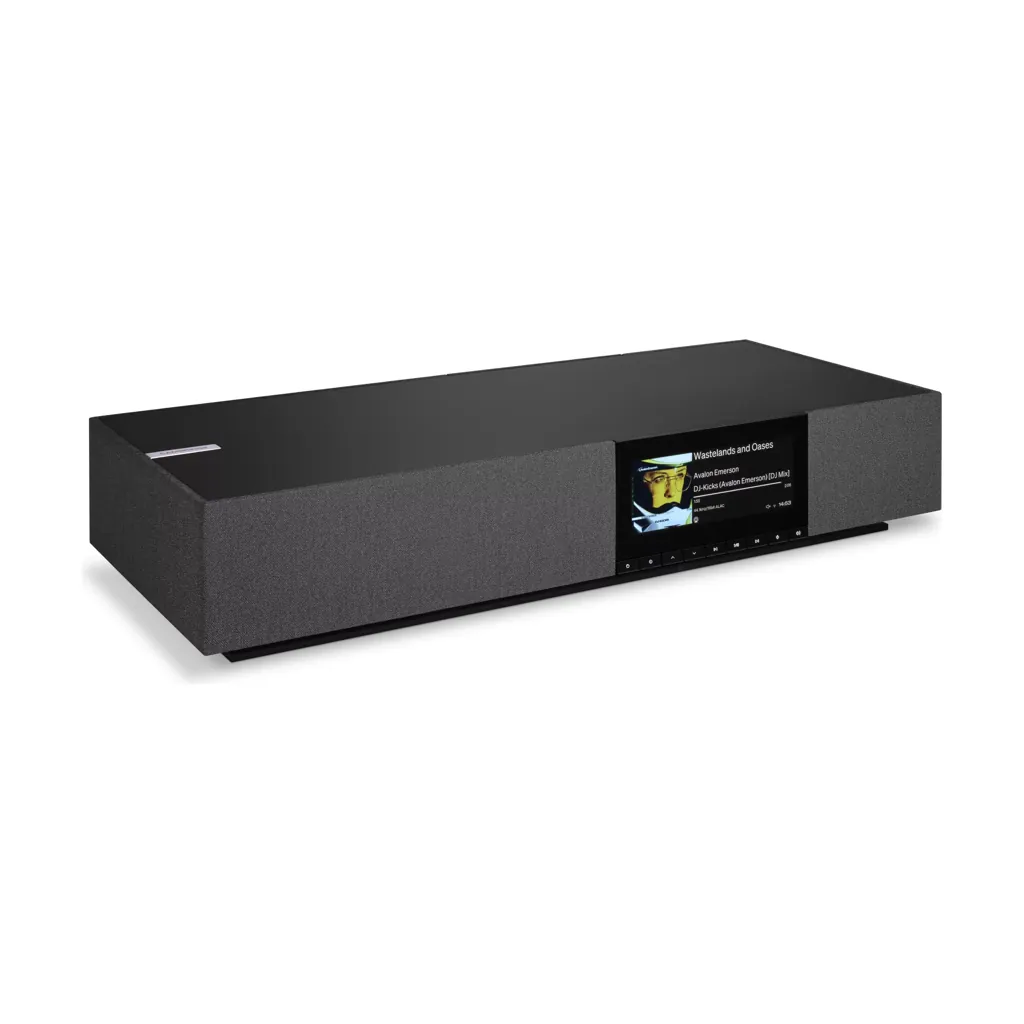

Cambridge Audio Evo One combines a network streamer, amplification and fourteen speaker drivers in one complete music system.
Cambridge Audio Evo One combines a network streamer, amplification and fourteen speaker drivers in one complete music system. Four tweeters, four midrange drivers and six woofers are powered by fourteen 50-watt amplifier channels. The arrangement is designed to distribute detailed sound throughout the listening space without separate loudspeakers.
StreamMagic Gen 4 brings together network music, internet radio and supported streaming services. HDMI eARC connects a television, while the moving-magnet phono input accommodates a compatible turntable. Optical, line-level, USB media and Bluetooth connections provide additional ways to listen.
Room optimisation and a seven-band equaliser let you adapt playback to placement and room acoustics. The 6.8-inch colour display, front controls, remote and StreamMagic app offer complementary ways to operate the system. Choose Walnut or the Midnight black finish to suit the room.
| POWER OUTPUT | 14 x 50W into 4 Ohms |
|---|---|
| DRIVERS | 4 x 1" silk dome tweeters, 4 x 2.25" aluminium cone mid-range, 6 x 2.75" long-throw woofers |
| AMPLIFICATION | Class-D |
| DAC | Amplifier Integrated - 32bit/192kHz |
| FREQUENCY RESPONSE | 38Hz to 20kHz +/-3dB, LF(-10dB) at 32Hz |
| DISPLAY SCREEN | 6.8" IPS TFT - 1280 x 480 |
| STREAMMAGIC | Gen 4 |
| ANALOGUE AUDIO INPUTS | 1 x Line level (RCA) + 1 x Moving Magnet Phonostage (RCA) |
| HDMI ARC | Yes - eARC compatible |
| USB | 1 x Local USB Media |
| S/PDIF INPUT | 1 x TOSlink |
| BLUETOOTH | 5.1 A2DP / AVRCP supporting SBC and AAC |
| ETHERNET | IEEE 802.3, 10 Base-T or 100 Base-T |
| WI-FI | IEEE 802.11 a/b/g/n/ac (2.4GHz / 5GHz) |
| AUDIO FORMATS | WAV, FLAC, ALAC, AIFF, DSD (DSF and DFF), WMA, MP3 (CBR and VBR), AAC, HE AAC and AAC+ (CBR and VBR), OGG Vorbis |
| COMPATIBILITY | S/PDIF TOSLink Optical: PCM up to 24bit/192kHz, HDMI eARC: PCM up to 24bit/192kHz, Local USB Media: PCM up to 32bit/384kHz, DSD up to 128x, File system support FAT32, NTFS, Ext2/3/4, ExFAT, UPnP: PCM up to 32bit/384kHz, DSD up to 128x |
| BASS / TREBLE CONTROLS | Yes - Advanced DSP features |
| INTERNET RADIO | Yes |
| TIDAL CONNECT | Yes |
| SPOTIFY CONNECT | Yes |
| QOBUZ | Yes |
| DEEZER | Yes |
| AMAZON MUSIC | Yes - via Google Cast |
| GOOGLE CAST | Yes |
| AIRPLAY 2 | Yes |
| ROON READY | Yes |
| STANDBY POWER CONSUMPTION | <0.5W (eco), <2W (network standby) |
| DIMENSIONS (W X H X D) | 675 x 129 x 290mm (26.6 x 5.1 x 11.4") |
| WEIGHT | 14.5kg (32lbs) |
| WHAT'S IN THE BOX | Evo One, Welcome letter, Registration Card, Safety guide, Mains Lead, Remote Control, 2 x AAA Batteries |
| Couleur | Black, Walnut |
| Marques | Cambridge Audio |
