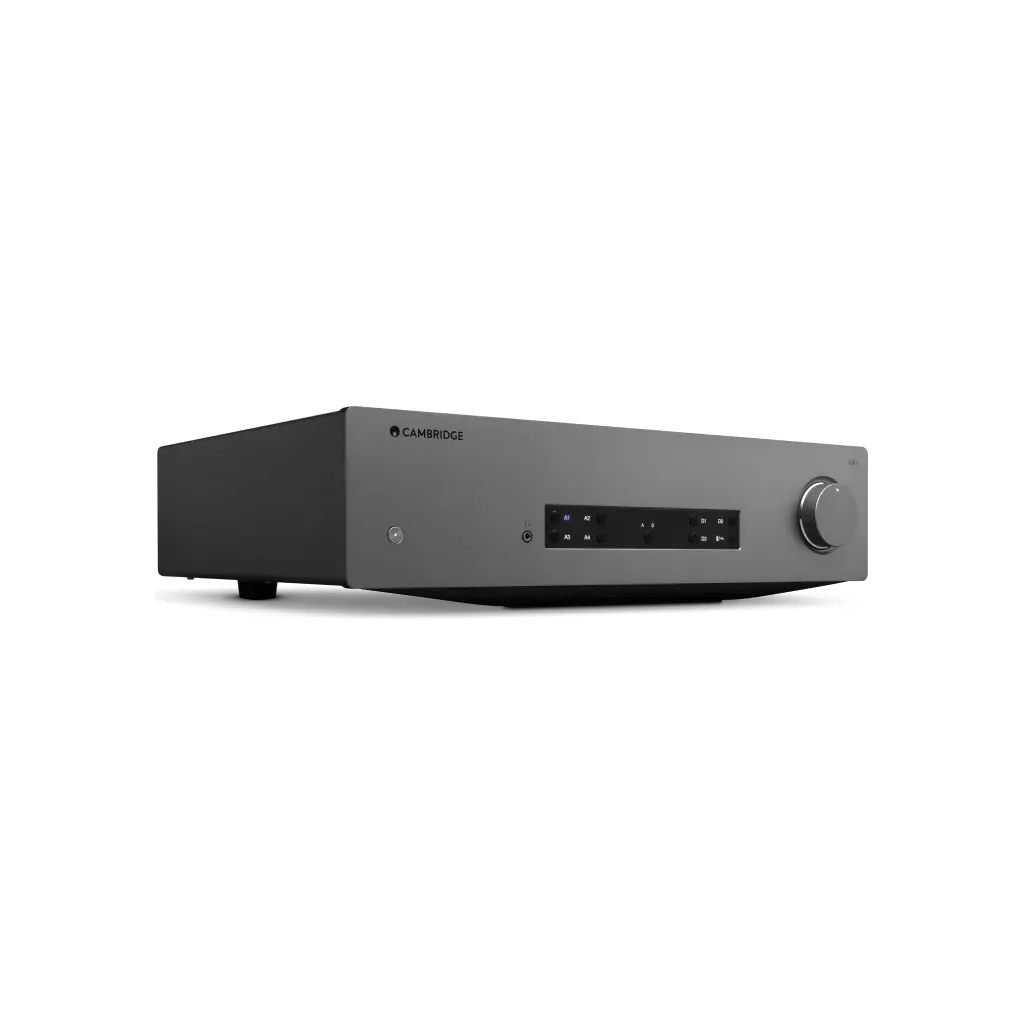

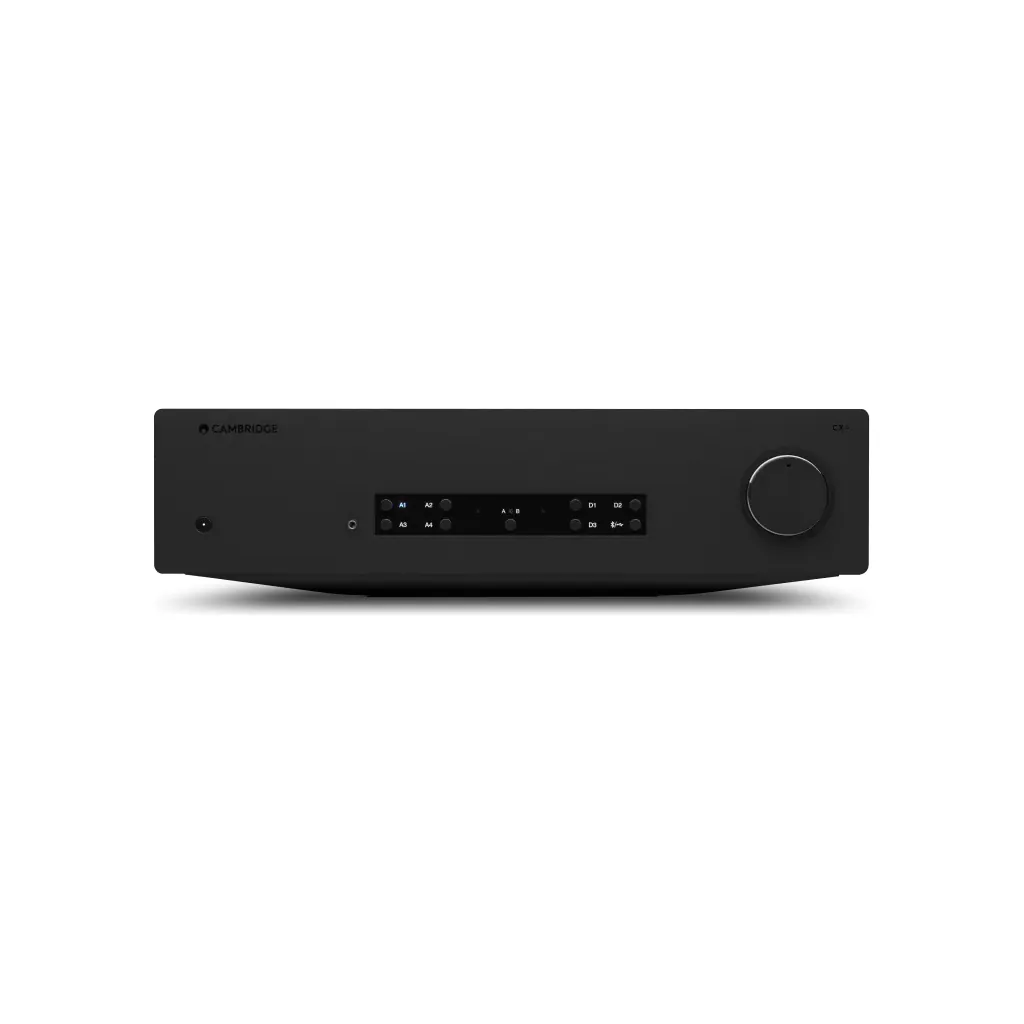

Cambridge Audio CXA81 Mk II is an 80-watt-per-channel integrated stereo amplifier with Class AB amplification.
Cambridge Audio CXA81 Mk II is an 80-watt-per-channel integrated stereo amplifier with Class AB amplification. Its toroidal transformer and revised component selection support a clear, controlled presentation across a wide range of passive loudspeakers. Balanced XLR and unbalanced RCA inputs make it suitable for both established and evolving hi-fi systems.
An ESS ES9018K2M Sabre DAC accepts digital audio from USB, optical and coaxial sources. Bluetooth aptX HD allows compatible phones and other devices to connect wirelessly. The combination of analogue and digital connections reduces the need for separate conversion equipment in a compact stereo setup.
A dedicated subwoofer output, preamp output and headphone connection provide flexibility beyond the main loudspeakers. Choose Lunar Grey or the Black finish listed in the current tariff; both use the same core amplifier design and rated power.
| POWER OUTPUT | 80W RMS into 8 Ohms, 120W RMS into 4 Ohms |
|---|---|
| DAC | ESS Sabre ES9018K2M |
| FREQUENCY RESPONSE | <5Hz– 60kHz +/-1dB |
| ANALOGUE AUDIO INPUTS | 1x balanced XLR, 4 x RCA |
| COMPATIBILITY | TOSLINK optical: 16/24bit 32-96kHz PCM only, S/PDIF coaxial: 16/24bit 32-192kHz PCM only, USB: audio profile 1.0/2.0 (default 2.0), up to 24-bit 384kHz PCM, up to DSD256 or DoP256, Bluetooth: 4.2 A2DP/AVRCP supporting up to aptX HD (24bit 48kHz) |
| BLUETOOTH APTX HD RECEIVER BUILT-IN | Yes |
| ROON TESTED | Yes |
| REMOTE CONTROL | Yes |
| MAX POWER CONSUMPTION | 750W |
| STANDBY POWER CONSUMPTION | <0.5W |
| DIMENSIONS (H X W X D) | 115 x 430 x 341mm (4.5 x 16.9 x 13.4”) |
| WEIGHT | 8.7kg (19.1lbs) |
| BOX CONTENTS | CXA81 Integrated Amplifier, Power Cable, 3 x AAA Batteries, Remote Control, Control Bus Cable, Bluetooth antenna, Quick Start Guide, Safety Guide |
| Couleur | Black, Lunar Grey |
| Marques | Cambridge Audio |
