Cambridge Audio AXA35 is an integrated stereo amplifier rated at 35 watts per channel into 8 ohms.
Cambridge Audio AXA35 is an integrated stereo amplifier rated at 35 watts per channel into 8 ohms. Its built-in phono stage accepts moving-magnet cartridges, making it a practical starting point for a vinyl-based hi-fi system without an additional phono preamplifier.

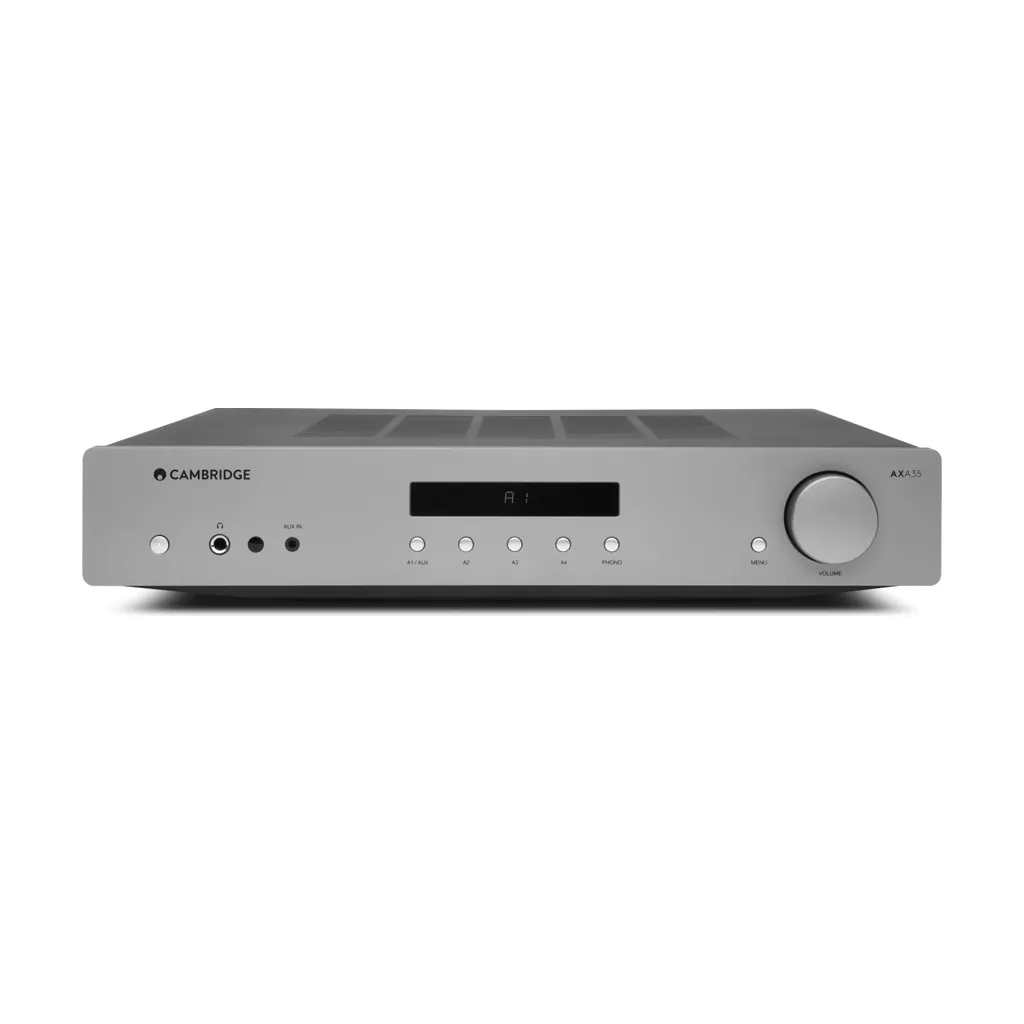

Four RCA inputs and a front-panel auxiliary connection accommodate other analogue sources. A headphone socket offers private listening, while the digital display and supplied remote simplify everyday operation. Bass, treble and balance controls allow basic adjustment to the system and room.

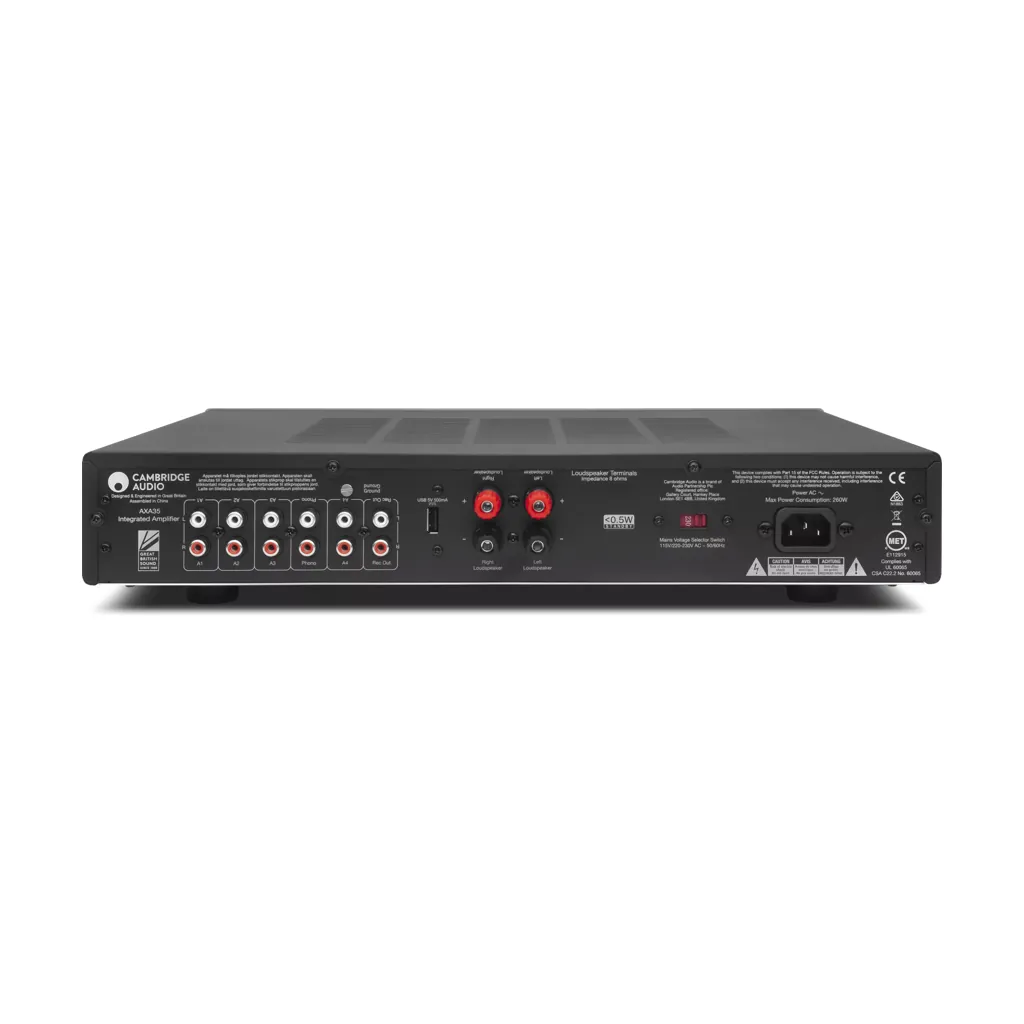

The rear USB connection supplies power to suitable accessories; it is not a USB audio input. The AXA35 focuses on analogue amplification and source selection, with a compact full-width design that coordinates with the AXC35 CD player.
| Power Output | 35 Watts (into 8 Ohms) |
|---|---|
| THD (unweighted) | <0.01% @ 1kHz, 80% of rated power <0.15% 20Hz - 20kHz, 80% of rated power |
| Frequency response (-3dB) | 5Hz - 50kHz |
| S/N ratio (ref 1W) | >82dB (unweighted) |
| Input impedances | 47k ohms |
| Power Amp damping factor | > 50 |
| Max. power consumption | 260W |
| Bass/Treble controls | Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 10kHz |
| Standby power consumption | <0.5W |
| Inputs | 4x RCA, 1x Phono, 1 x 3.5mm Aux input (front panel) |
| Outputs | Speakers, Rec Out, USB 5V power |
| Dimensions (HxWxD) | 83 x 430 x 335mm (3.3 x 16.9 x 13.2”) |
| Weight | 5.6kg (12.3lbs) |
| In the box | AXA35 Integrated Amplifier, Power Cable, Remote Control, 2 x AAA Batteries |
| Marques | Cambridge Audio |
| Couleur | Grey |
