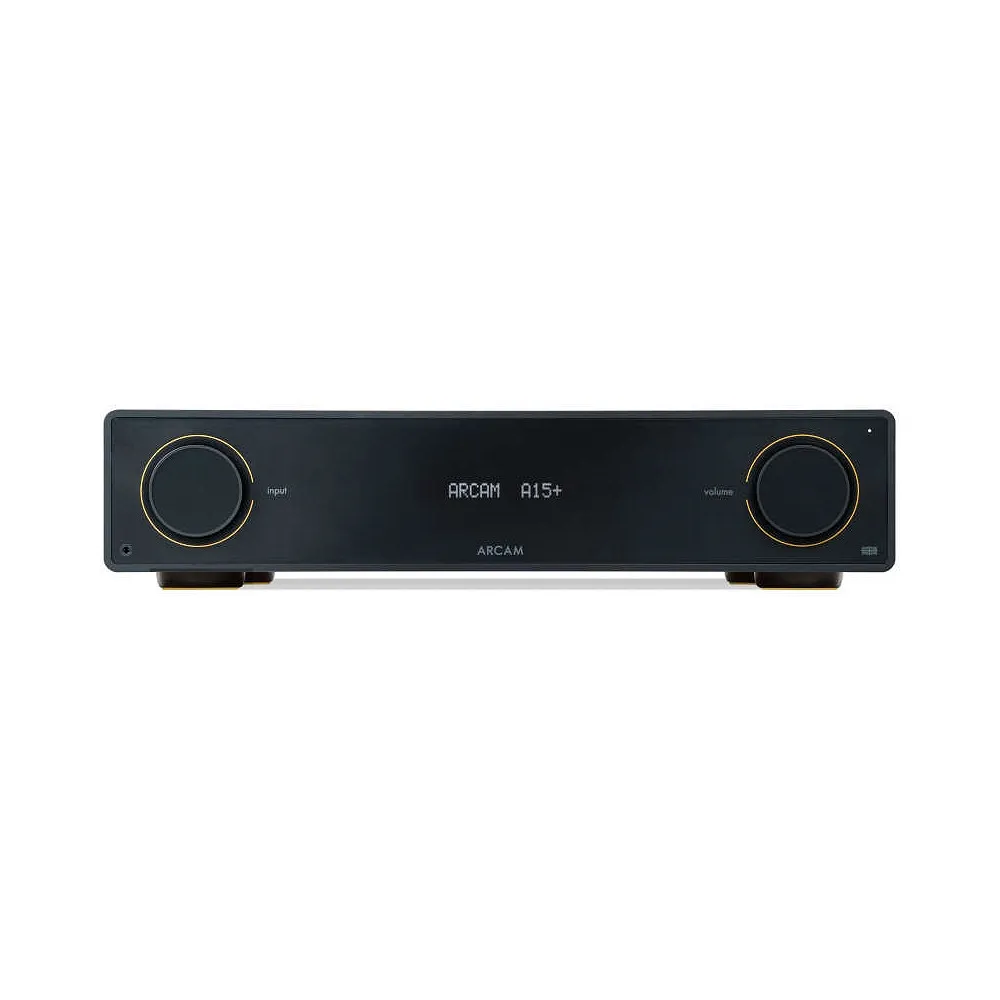

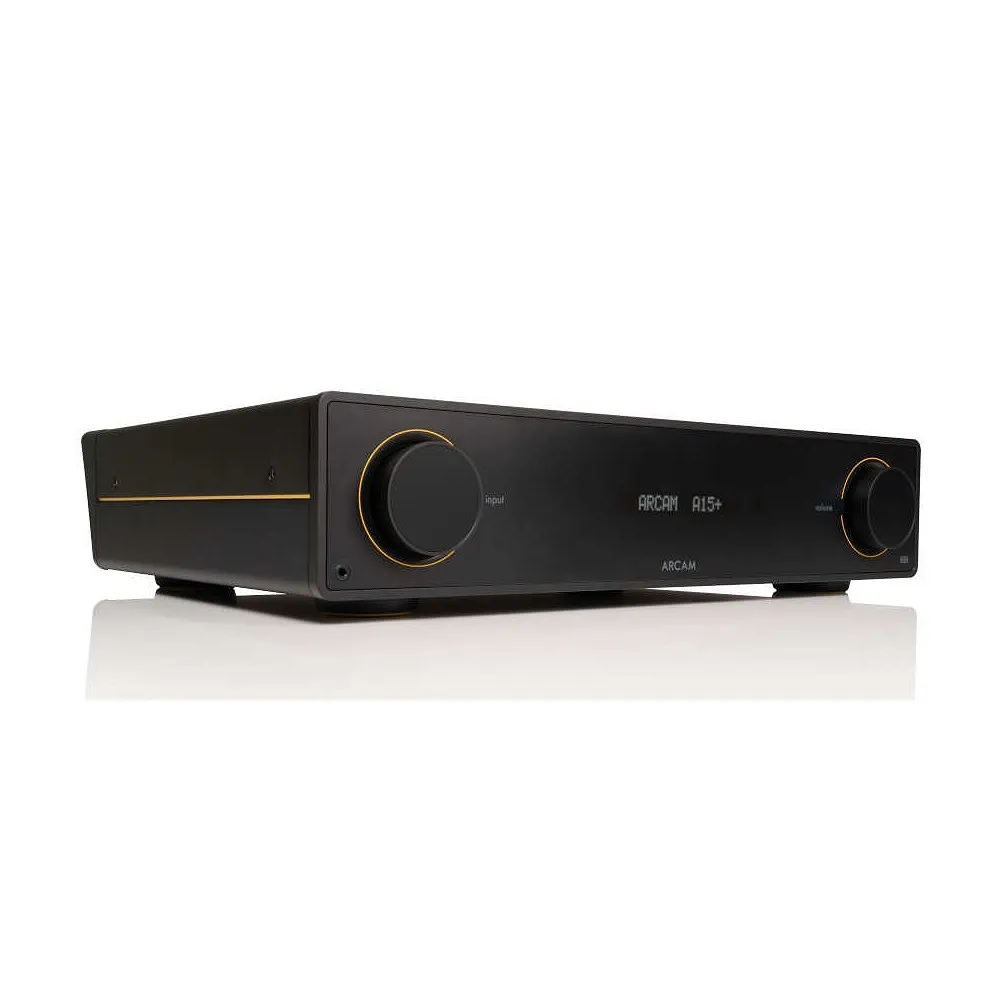

Arcam Radia A15 Plus - Integrated Amplifier

The "A" in ARCAM stands for amplification, where our expertise lies. The A15+ is the latest in nearly 50 years of amplifier design and manufacture, dating back to our first product in 1976 —the A&R Cambridge A60 amplifier. Since the launch of the award-winning ARCAM Radia A15, we haven't rested. Our engineering team pushed further to create the powerful ARCAM A15+, an even better sounding and more versatile integrated amplifier.

The A15+ features an enhanced power supply design and cutting-edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required.

With a wide array of analogue inputs, including a meticulously tuned phono stage, and digital inputs including HDMI eARC, the A15+ provides an impact for everything from vinyl to TV.

Specifications

Continuous power output (0.5% THD), per channel

2 channels driven, 20Hz - 20kHz, 8Ω 80W

2 channels driven, 1kHz, 4Ω 120W

Harmonic distortion, 80% power, 8Ω at 1kHz 0.002%

Analogue Inputs

Number of inputs 3 (RCA pairs)

Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB

Frequency response 20Hz—20kHz ± 0.2dB

Phono (MM) Input

Input impedance 47kΩ + 100pF

Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB

Digital Inputs

Supported Sample Rates (kHz)

192, 176.4, 96, 88.2, 48, 44.1

Bit depths (bit) 24, 16

Frequency response (filter 1) 20Hz—20kHz ± 0.2dB

Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB

Headphone Output

Maximum output level (RMS) into 32Ω/300Ω 2.5V/5Vrms

Load range 16Ω - 2kΩ

Wireless Specifications

Bluetooth Version - 5.4; A2DP Sink/Source, AVRCP, BLE, SBC, AAC, aptX, aptX HD and aptX Lossless, LE Audio, Auracast

Bluetooth Transmitter Frequency and Power - 2,400 MHz to 2,483.5 MHz: <20dBm

General

Mains voltage 100V or 110–120V or 220–240V, 50–60Hz

Power consumption (maximum) 500W

Power consumption (standby) <0.5W

Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 98mm

Weight (net) 10kg

Weight (packed) 13kg

Supplied accessories

Mains lead(s)

Remote control with 2 x AAA batteries
